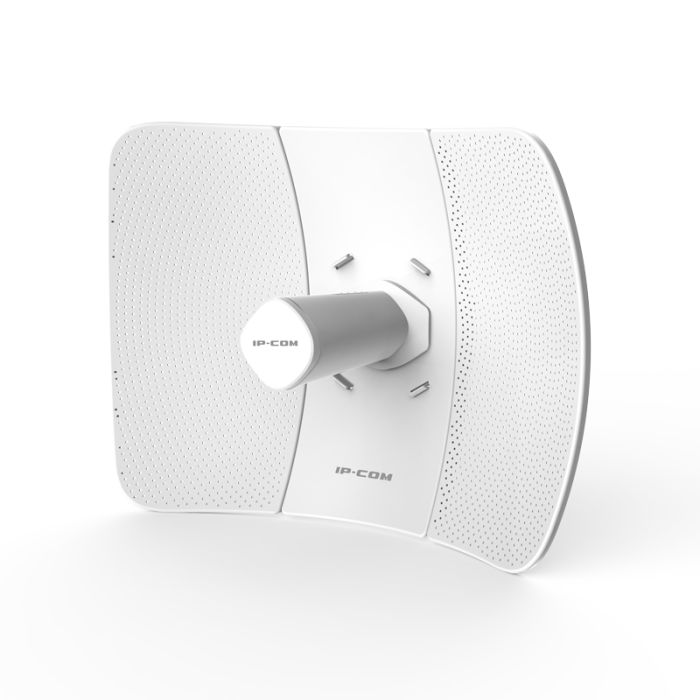

iLBE-5AC IP-COM 5GHz 23dBi ipMAX AC Gigabit Outdoor CPE
iLBE-5AC is an IP-COM long-range 5 GHz ipMAX AC gigabit outdoor CPE for point-to-point and point-to-multipoint wireless applications. It uses 11ac wireless technology, a 23 dBi directional antenna and a gigabit Ethernet port, with a stated maximum point-to-point throughput of up to 450 Mbps.
Designed for video surveillance transmission and wireless broadband access, the unit combines IP65 outdoor protection, 6000 V lightning protection and passive PoE power. ipMAX TDMA and iLink auto-bridge support make it useful for longer outdoor wireless links where setup simplicity and link stability are important.
Key Features
- Supports long-distance 5 GHz wireless links for surveillance and broadband access.
- Uses a high-gain directional antenna to focus connectivity across outdoor paths.
- Combines gigabit Ethernet with 11ac wireless for efficient link deployment.
- Helps simplify field setup through IP-COM auto-bridge technology.
- Provides outdoor-rated protection for exposed point-to-point installations.
- Catalogue Family:
- MODEMS & ROUTERS
- Dimensions:
- 391.5 mm x 280 mm x 223 mm
- Deployment:
- Pole mount
- Frequency Range:
- 5 GHz
- Wireless Standard:
- IEEE 802.11a/n/ac
- Private Tdma Protocol:
- ipMAX
- Maximum Wireless Rate:
- 867 Mbps
- Interface:
- 1 x 10/100/1000 Mbps Ethernet port
- Antenna Gain:
- 23 dBi
- Antenna Beamwidth:
- 10 degrees horizontal; 10 degrees vertical
- Power Consumption:
- 7.5 W
- Waterproof Level:
- IP65
- Power Method:
- 24 V 0.5 A passive PoE
- Lightning Protection:
- 6000 V
- Product Type:
- Modems & Routers
