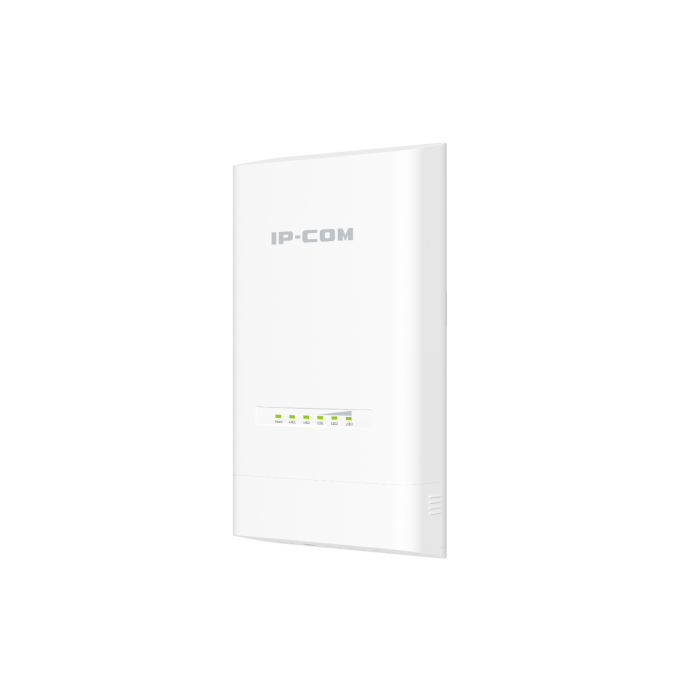

CPE12 IP-COM 5GHz 12dBi ipMAX AC Gigabit Outdoor CPE
CPE12 is an IP-COM 5 GHz ipMAX AC gigabit outdoor CPE for point-to-point and point-to-multipoint wireless links. It uses 11ac wireless technology, a 12 dBi dual-polarisation directional antenna, two gigabit Ethernet ports and a maximum wireless rate of 867 Mbps.
The CPE is designed for video surveillance transmission and wireless broadband access, with IP65 outdoor protection, 6000 V lightning protection and pole or wall deployment. Multiple power options and IP-COM iLink auto-bridge technology support practical field setup for installers building long-range outdoor links.
Key Features
- Supports long-range 5 GHz wireless links for CCTV and broadband access applications.
- Pairs directional antenna design with gigabit Ethernet connectivity for efficient backhaul.
- Offers flexible power choices for different installation conditions.
- Helps streamline pairing and setup through IP-COM auto-bridge technology.
- Uses outdoor-rated protection for exposed network deployments.
- Catalogue Family:
- ACCESSORIES
- Product Model:
- CPE12 (MS-Loco5AC)
- Dimensions:
- 193 mm x 109 mm x 61 mm
- Deployment:
- Pole or wall mount
- Frequency Range:
- 5 GHz
- Wireless Standard:
- IEEE 802.11a/n/ac
- Private Tdma Protocol:
- ipMAX
- Maximum Wireless Rate:
- 867 Mbps
- Interfaces:
- 2 x 10/100/1000 Mbps Ethernet ports
- Antenna Gain:
- 12 dBi
- Antenna Beamwidth:
- 30 degrees horizontal; 30 degrees vertical
- Power Consumption:
- 6.5 W
- Waterproof Level:
- IP65
- Power Method:
- 802.3af/at PoE, 12 V 1 A passive PoE or 12 V 1 A DC
- Lightning Protection:
- 6000 V
- Product Type:
- Accessories
