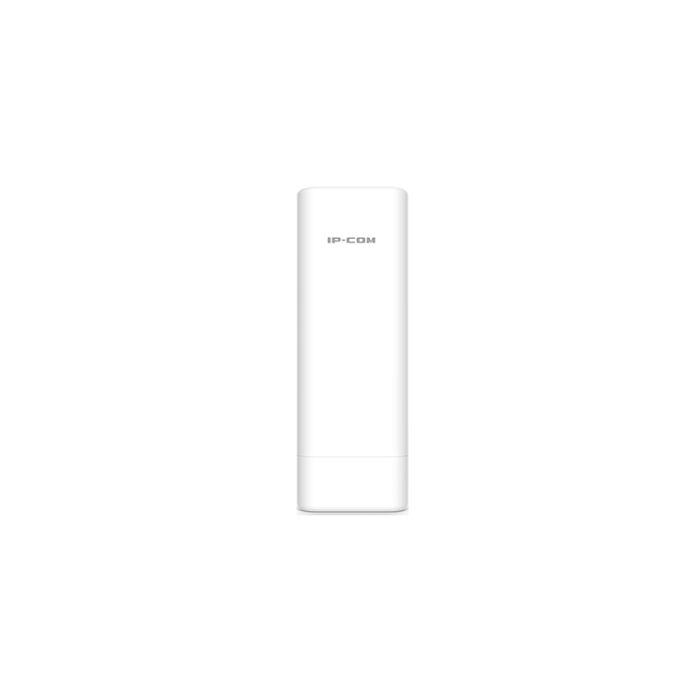

ICMCPE13 CPE13 5GHz 16dBi ipMAX AC Gigabit Outdoor CPE
The ICMCPE13 is the IP-COM CPE13 5GHz 16dBi ipMAX AC Gigabit Outdoor CPE. Outdoor 802.11ac wireless device with an integrated 16 dBi directional antenna, one Gigabit Ethernet port, an IP65-rated enclosure, and 6000 V lightning protection.
Suitable for Point-to-Point (PtP) and Point-to-Multipoint (PtMP) wireless links, including video surveillance transmission and private ISP wireless access. Features multiple operating modes and flexible power options.
Key Features
- Supports long-distance outdoor wireless links for CCTV and broadband access
- Integrated directional antenna helps focus the connection between link endpoints
- Gigabit Ethernet port supports stronger wired handoff for higher-throughput links
- Flexible power methods help installers adapt to available site infrastructure
- IP65 enclosure and lightning protection support exposed outdoor deployment
- Catalogue Family:
- ACCESSORIES
- Model:
- CPE13
- Dimensions:
- 270 x 94.86 x 67.5 mm
- Deployment:
- Pole mount
- Application Scenarios:
- PtP and PtMP wireless connection for private ISP access or CCTV surveillance
- Frequency Range:
- 5GHz
- Compliant Standards:
- IEEE 802.11a/n/ac
- Private Tdma Protocol:
- ipMAX
- Maximum Wireless Rate:
- 867Mbps
- Interface:
- 1 x 10/100/1000Mbps Ethernet port
- Antenna Gain:
- 16dBi
- Antenna Beamwidth:
- Horizontal 30 deg; vertical 30 deg
- Power Consumption:
- 6.5W
- Waterproof Level:
- IP65
- Power Method:
- PoE 802.3af/at; 24V 0.5A Passive PoE; 12V 1A DC
- Lightning Protection:
- 6000V
- Operating Temperature:
- -30 deg C to 60 deg C
- Certifications:
- FCC/CE/RoHS
- Dbi:
- 16DBI
- Frequency:
- 5GHZ
- Mounting:
- POLE MOUNTED
- Wattage:
- 6.5W
- Product Type:
- Accessories
