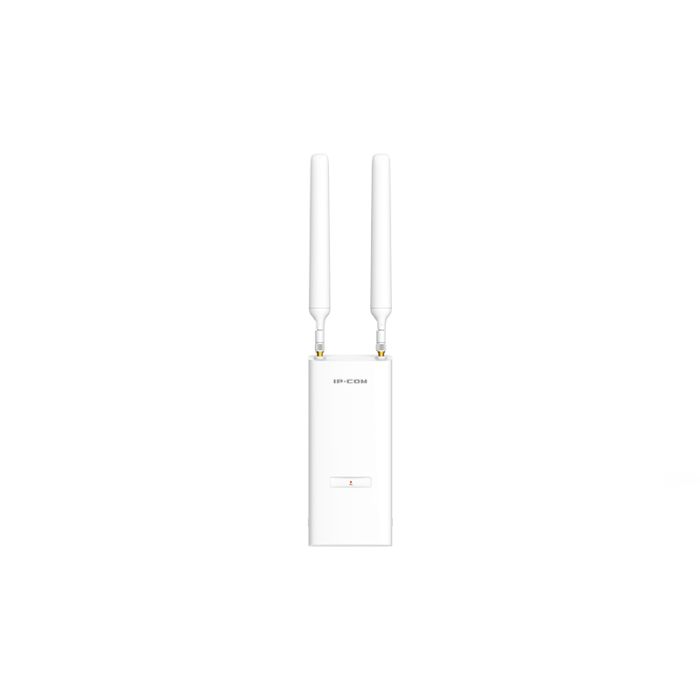

iUAP-AC-M AC1200 Indoor Outdoor Wi-Fi Access Point - IP65
iUAP-AC-M is a dual-band 802.11ac indoor/outdoor Wi-Fi access point with a concurrent data rate up to 1167 Mbps. It supports 2.4 GHz and 5 GHz operation, MU-MIMO, two 5 dBi omni-directional antennas, detachable RP-SMA antenna connectors and a 10/100/1000 Base-TX Ethernet port.
With its IP65 enclosure, wall or pole mounting, 6000 V lightning protection and PoE or 24 V DC power options, iUAP-AC-M is designed for factories, warehouses and other demanding indoor or outdoor coverage areas. VLAN tagging for SSIDs, AP/client+AP modes and ProFi centralised management support practical multi-service wireless deployments.
Key Features
- Outdoor-ready enclosure supports wireless coverage in harsher site conditions.
- Dual-band AC1200 performance helps serve clients across both 2.4 GHz and 5 GHz bands.
- Detachable antennas and RP-SMA connectors provide flexibility for supported antenna choices.
- Wall or pole mounting helps installers position coverage where it is needed.
- Centralised ProFi management supports easier monitoring and configuration across compatible APs.
- Catalogue Family:
- POWER SUPPLY
- Model:
- iUAP-AC-M
- Product Type:
- Power Supply
- Dimensions:
- 194.7 x 83 x 42.1 mm
- Frequency Band:
- 2.4 GHz and 5 GHz
- Wireless Standards:
- IEEE 802.11a/b/g/n/ac
- Data Rate:
- 2.4 GHz: 1-300 Mbps; 5 GHz: 6-867 Mbps
- Ethernet Port:
- 1 x 10/100/1000 Base-TX port
- Waterproof Level:
- IP65
- Lightning Protection:
- 6000 V
- Power Supply:
- IEEE 802.3af/at and 24 V 0.5 A Passive PoE
- Antenna:
- 2 x 5 dBi, RP-SMA connector
- Maximum Connected Clients:
- 2.4 GHz: 128; 5 GHz: 128
