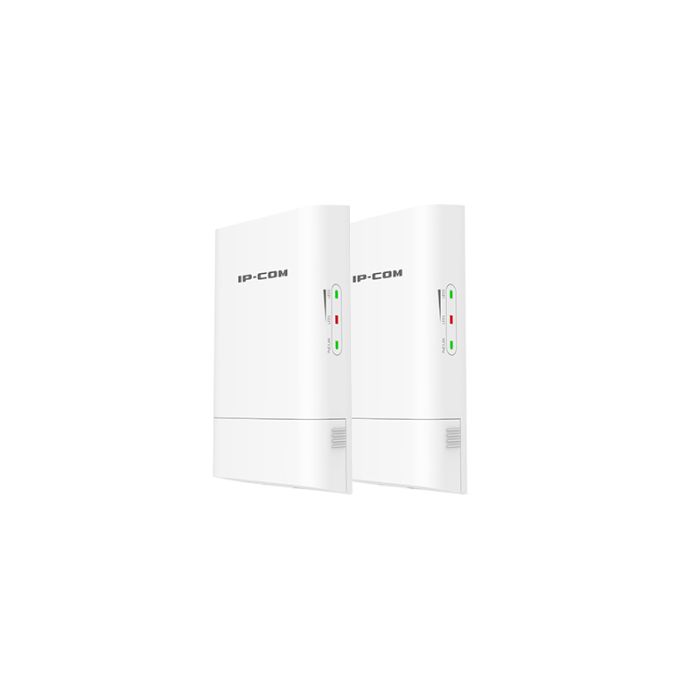

ICMCPE5-2PACK CPE5 5GHz 9dBi AC Outdoor CPE - 2 Pack
The ICMCPE5-2PACK is a 2 pack of IP-COM CPE5 5GHz 9dBi AC 867Mbps outdoor CPE units. The ICMCPE5-2PACK is a two-pack outdoor 802.11ac wireless CPE kit with integrated directional antennas, passive PoE/DC power and an IP65-rated enclosure.
It is suitable for point-to-point (PtP) and point-to-multipoint (PtMP) wireless links, including CCTV surveillance transmission and private ISP access.
Key Features
- Two-pack configuration supports paired wireless link setup from one item
- Outdoor CPE design suits CCTV and broadband bridge applications
- 9dBi directional antenna helps establish focused point-to-point links
- ILink auto-bridge support can simplify initial pairing for compatible units
- Passive PoE and DC power options support flexible site installation
- Catalogue Family:
- ACCESSORIES
- Model:
- CPE5
- Pack Configuration:
- 2 pack
- Dimensions:
- 132 x 72 x 46.3 mm
- Deployment:
- Pole/wall mount
- Application Scenarios:
- PtP and PtMP wireless connection for private ISP access or CCTV surveillance
- Frequency Range:
- 5GHz
- Compliant Standards:
- IEEE 802.11a/n/ac
- Maximum Wireless Rate:
- 867Mbps
- Interface:
- 1 x 10/100Mbps LAN port
- Antenna Gain:
- 9dBi
- Antenna Beamwidth:
- Horizontal 30 deg; vertical 30 deg; elevation 30 deg
- Power Consumption:
- 4.7W
- Waterproof Level:
- IP65
- Power Method:
- 12V 1A Passive PoE; 12V 1A DC
- Passive PoE Distance:
- Up to 60 metres
- Operating Temperature:
- -30 deg C to 60 deg C
- Certifications:
- FCC/CE/RoHS
- Frequency:
- 5GHZ
- Mounting:
- POLE/WALL MOUNTED
- Wattage:
- 4.7W
- Product Type:
- Accessories
