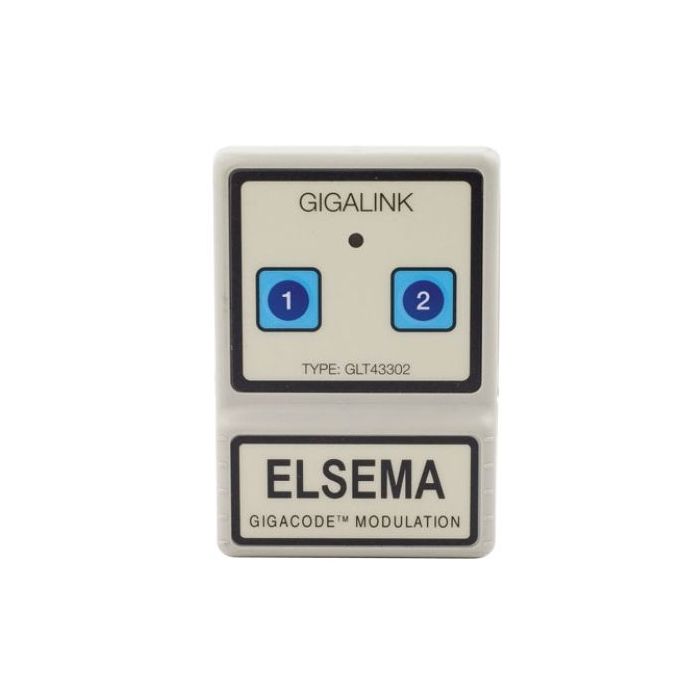

GLT43302 Elsema Gigalink 433 MHz Handheld Transmitter - 2 Channel
The GLT43302 is the 2 channel model in the Elsema GLT433 handheld Gigalink transmitter range. The GLT43302 is a 433.920 MHz two-channel handheld transmitter with 9 V battery operation and Gigalink coding.
It is suitable for gate, alarm, lighting, and remote activation applications requiring two independent control functions. It is compatible with GLR433 Series receivers.
Key Features
- Two-channel layout supports paired control functions without moving to a larger remote.
- Shared GLT433 programming approach allows each button to be assigned to receivers as required.
- 433 MHz operation suits Gigalink receiver-based installations.
- Battery-monitor LED helps reduce surprise failures from a flat transmitter battery.
- Compact case size keeps the 2 channel remote easy to carry and deploy.
- Catalogue Family:
- POWER SUPPLY
- Product Family:
- GLT433 handheld Gigalink transmitter
- Channels:
- 2
- Operating Frequency:
- 433.920 MHz
- Power Supply:
- 9 V battery, part number 6LR61
- Current Consumption:
- Max. 35 mA at 8 V DC during transmission
- Operating Temperature:
- -5 to 50 degrees C
- Dimensions:
- 81 x 56 x 24 mm
- Usable Operating Range:
- Up to 350 m depending on receiver antenna and location
- Product Type:
- Power Supply
