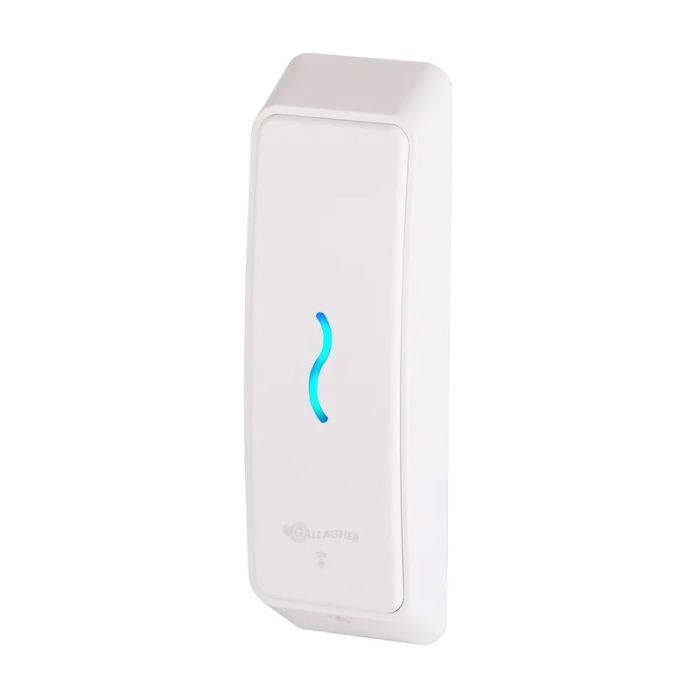

C300481 Gallagher SMB T15 Multi Tech Reader White
The Gallagher C300481 SMB T15 Multi Tech Reader White is a slim contactless access control reader using high-speed RS485 HBUS communication for responsive access decisions. It supports MIFARE DESFire EV1 and EV2, MIFARE Plus, MIFARE Classic, 125 kHz proximity credentials and Gallagher Mobile Connect via Bluetooth.
Designed for mullion mounting, the white T15 Reader provides reliable credential reading across various mounting surfaces, including metal. Its IP68 environmental protection and IK07 impact rating suit demanding outdoor access points and environmentally challenging Gallagher security installations.
Key Features
- Secure reader authentication and encrypted communications help protect access control data
- Custom site encryption-key support enables site-specific credential security
- Heartbeat monitoring provides real-time visibility of reader status
- Field-upgradeable software supports ongoing reader maintenance and development
- Backward compatibility with Cardax IV enabled hardware supports established Gallagher systems
LIMITED LIFETIME
- Catalogue Family:
- READERS
- Model:
- C300481
- Product Type:
- MULTI TECH READER
- Colour:
- WHITE
- Credential Support:
- MIFARE DESFire EV1, MIFARE DESFire EV2, MIFARE Plus, MIFARE Classic, 125 kHz proximity and Bluetooth wireless technology
- Maximum Read Distance:
- 75 mm
- Environmental Protection:
- IP68
- Impact Rating:
- IK07
- Voltage:
- 9-16 VDC
- Dimensions:
- 139 x 44 x 23 mm
- Cat5e Cable Specification:
- Up to 500 m
- Hbus Cable Specification:
- Up to 500 m
- Standards Compliance:
- FCC, CE, UL and RCM approvals stated in product detail sheet
- Series:
- SMB T15
- Connection:
- RS485 HBUS
- IK Rating:
- IK07
- Power:
- 9-16VDC
- Card Type:
- MIFARE DESFIRE EV1/EV2
- Recognition Distance:
- 75MM
- IP Rating:
- IP68
