Please Note: Gallagher products must be installed by a Gallagher-certified installer. A subscription may also be required.

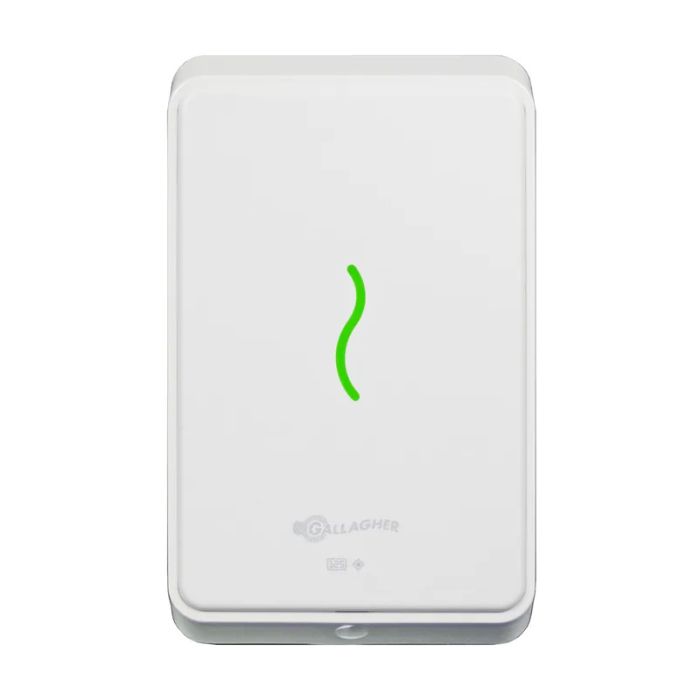

C300431 Gallagher SMB T11 Multi Tech Reader White
The Gallagher C300431 SMB T11 Multi Tech Reader White provides contactless access control and local alarm management within a Gallagher SMB security system. Users can request access or arm and disarm authorised areas using the SMB app through Bluetooth or NFC, or by presenting a compatible SMB key tag or card.
The reader communicates through the high-speed RS485 HBUS protocol with secure authentication and encrypted data transmission. Visual door and alarm-state indication, heartbeat monitoring, IP68 environmental protection and an IK07 impact rating support dependable operation across indoor and environmentally exposed access points.
Key Features
- Combines contactless door access and local alarm control in one reader
- Supports mobile credentials SMB key tags and SMB cards
- Allows local Bluetooth operation when an internet connection is unavailable
- Provides visible system states and heartbeat monitoring for operational awareness
- Operates from -35 °C to +70 °C for use across varied installation environments
- Catalogue Family:
- READERS
- Model:
- C300431
- Product Type:
- MULTI TECH READER
- Colour:
- WHITE
- Credential Support:
- MIFARE DESFire EV1, MIFARE DESFire EV2, MIFARE Plus, MIFARE Classic, 125 kHz proximity and Bluetooth wireless technology
- Maximum Read Distance:
- 95 mm
- Environmental Protection:
- IP68
- Impact Rating:
- IK07
- Voltage:
- 9-16 VDC
- Dimensions:
- 115 x 70 x 12 mm
- Cat5e Cable Specification:
- Up to 500 m
- Hbus Cable Specification:
- Up to 500 m
- Standards Compliance:
- FCC, CE, UL and RCM approvals stated in product detail sheet
- Series:
- SMB T11
- Connection:
- RS485 HBUS
- IK Rating:
- IK07
- Power:
- 9-16VDC
- Card Type:
- MIFARE DESFire
- Recognition Distance:
- 40-60MM
- IP Rating:
- IP68
