Please Note: Gallagher products must be installed by a Gallagher-certified installer. A subscription may also be required.

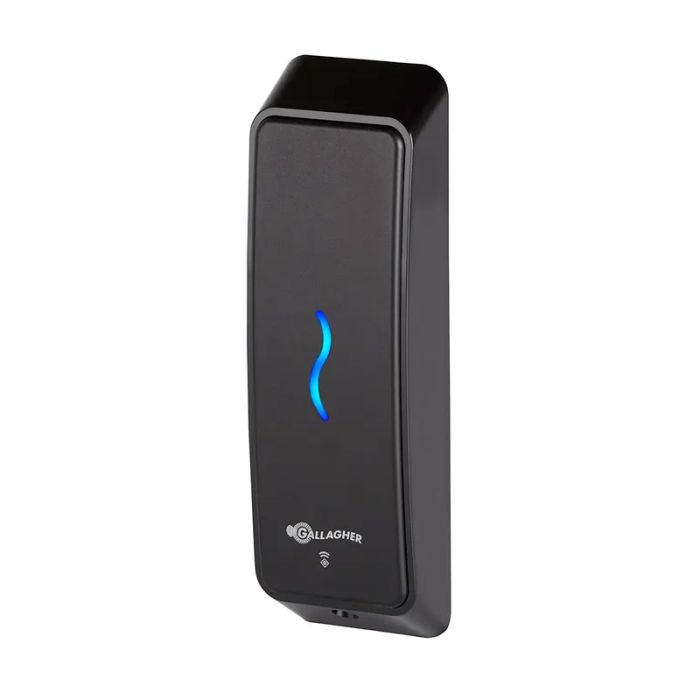

C300480 Gallagher SMB T15 Multi Tech Reader Black
The Gallagher C300480 SMB T15 Multi Tech Reader Black provides fast contactless access control using the high-speed RS485 HBUS protocol. It supports MIFARE DESFire EV1 and EV2, MIFARE Plus, MIFARE Classic, 125 kHz proximity credentials and Gallagher Mobile Connect through Bluetooth.
Its slim profile suits mullion mounting and delivers reliable credential reading across different surfaces, including metal. IP68 environmental protection, an IK07 impact rating, secure reader authentication, encrypted communications and heartbeat monitoring support use in demanding access-control installations.
Key Features
- Brings smart-card proximity and mobile credentials together in one reader
- Slim form factor supports neat installation on narrow door mullions
- IP68 and IK07 ratings suit outdoor and high-traffic access points
- Authenticated encrypted communications support secure system integration
- Field-upgradeable software and heartbeat monitoring simplify ongoing management
LIMITED LIFETIME
- Catalogue Family:
- READERS
- Model:
- BVC300480; C500480 listed for T15 Reader Black in family datasheet
- Product Type:
- MULTI TECH READER
- Colour:
- BLACK
- Credential Support:
- MIFARE DESFire EV1, MIFARE DESFire EV2, MIFARE Plus, MIFARE Classic, 125 kHz proximity and Bluetooth® wireless technology
- Maximum Read Distance:
- 75 mm
- Environmental Protection:
- IP68
- Impact Rating:
- IK07
- Voltage:
- 9-16 VDC
- Dimensions:
- 139 x 44 x 23 mm
- Cat5e Cable Specification:
- Up to 500 m
- Hbus Cable Specification:
- Up to 500 m
- Standards Compliance:
- FCC, CE, UL and RCM approvals
- Series:
- SMB T15
- Connection:
- RS485 HBUS
- IK Rating:
- IK07
- Power:
- 9-16VDC
- Card Type:
- MIFARE DESFIRE EV1/EV2
- Recognition Distance:
- 75MM
- IP Rating:
- IP68
