C500304 SMB Base Kit T15 Black

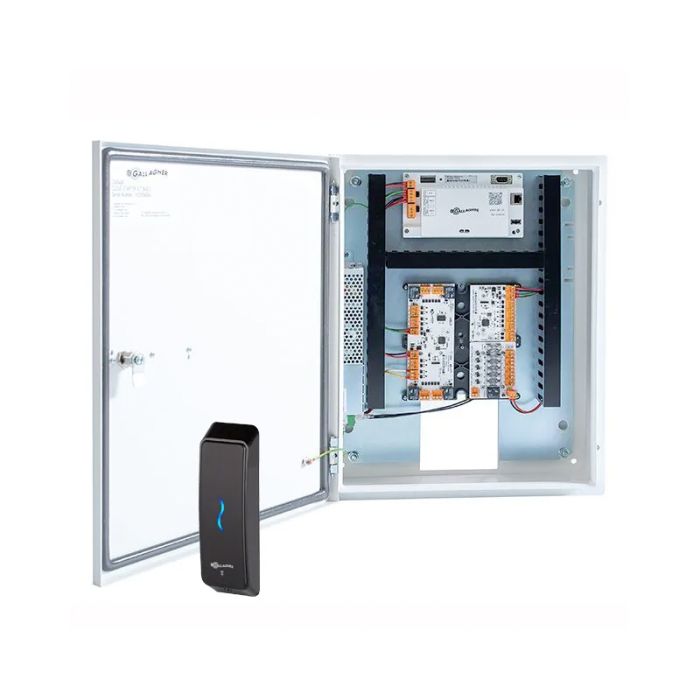

The C500304 is a Gallagher SMB Base Kit with a black T15 reader for the Gallagher SMB cloud-based security platform. The kit is based on the SMB Controller 6000 platform and includes HBUS I/O boards, Fire Relay and Fuse Board, 3.5 A power supply, I/O mounting plate, cabinet hardware, wiring loom, keys and 4.7 k OHM resistors.
The kit includes 1 x T15 Reader Black and supports Gallagher SMB access control and intruder alarm functionality.
Key Features
- Streamlines SMB installation by grouping control, I/O, power and cabinet hardware into one kit platform
- Supports app-based alarm, access control and user administration through Gallagher SMB
- Uses encrypted HBUS RS485 field communication for readers and I/O devices
- Provides a prepared hardware base for reader-led local arming, disarming and access requests
- Keeps expansion planning aligned to SMB capacity and HBUS device limits
- Catalogue Family:
- POWER SUPPLY
- Kit Configuration:
- SMB Base Kit T15 Black
- Reader Configuration:
- 1 x T15 Reader Black
- Core Kit Platform:
- SMB Controller 6000, HBUS 8In Board, HBUS 8In 4Out Board, SMB Fire Relay and Fuse Board, 3.5 A power supply and I/O mounting plate
- Default System Capacity:
- 4 access controlled doors, 16 inputs and 4 outputs
- Maximum System Capacity:
- 10 doors, 128 inputs and 64 outputs
- Hbus Device Capacity:
- 16 HBUS I/O boards and 10 readers
- Cabinet Dimensions:
- 500 x 480 x 150 mm
- Cabinet Protection Rating:
- IP44
- Power Supply:
- 3.5 A
- Product Type:
- Power Supply
