Please Note: Gallagher products must be installed by a Gallagher-certified installer. A subscription may also be required.

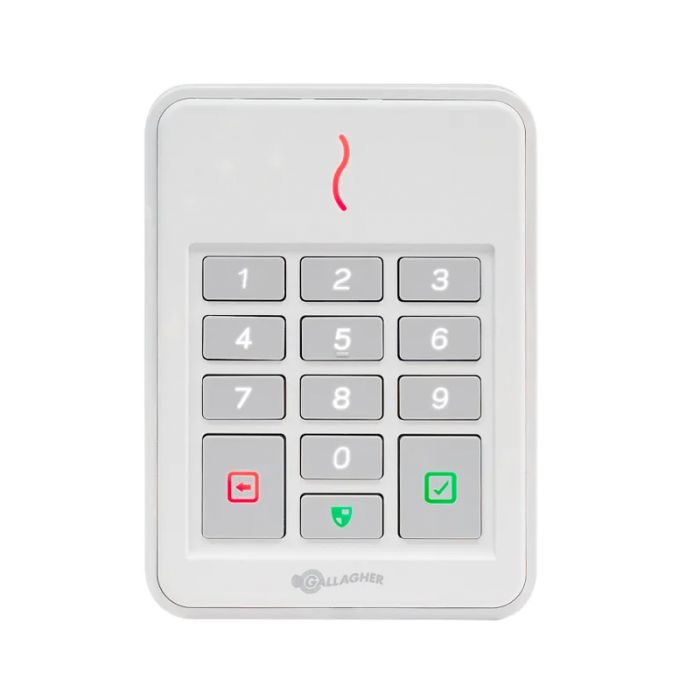

C300491 Gallagher T30 Multi Tech Keypad Reader White
The Gallagher C300491 T30 Multi Tech Keypad Reader White is a contactless access control reader designed for Gallagher security systems. It supports MIFARE Classic, MIFARE Plus and MIFARE DESFire EV1 and EV2 smart card technologies, providing flexible credential options for controlled entry points.
Recommended for environmentally exposed locations, the reader combines IP68 environmental protection with an IK09 impact rating. Its white finish and choice of surface or flush-box mounting make it suitable for secure entrances requiring a clean, integrated appearance.
Key Features
- Card and PIN operation supports two-factor authentication for enhanced entry control
- Gallagher Mobile Connect compatibility enables Bluetooth Low Energy and NFC mobile credentials
- Dedicated arming key and alarm-zone indication provide clear local security status
- Secure HBUS communications and upgradeability support dependable Gallagher system operation
- Integrated rear optical tamper helps identify interference with the installed reader
LIMITED LIFETIME
- Catalogue Family:
- READERS
- Model:
- C300491
- Product Type:
- MULTI TECH KEYPAD READER
- Colour:
- WHITE
- Credential Support:
- Bluetooth low energy mobile credentials for C300490/C300491; NFC mobile credentials for all variants
- Voltage:
- 13.6 VDC
- Current:
- 130 MA INACTIVE; 210 MA ACTIVE AT 13.6 VDC
- Temperature Range:
- -35 deg C to +70 deg C
- Humidity:
- 93% RH AT +40 DEG C AND 97% RH AT +25 DEG C
- Environmental Protection:
- IP68
- Impact Rating:
- IK09
- Dimensions:
- 118.0 x 86.0 x 26.7 mm
- Compatibility:
- Command Centre vEL8.30.1236 Maintenance Release 1 or later
- Maximum Readers On One Controller 6000:
- 20
- Series:
- SMB T30
- Connection:
- RS485 HBUS
- IK Rating:
- IK09
- Power:
- 9-16VDC
- Authentication Type:
- CARD / PIN / MOBILE CREDENTIAL
- Card Type:
- MIFARE DESFIRE EV1/EV2
- Recognition Distance:
- 90MM
- IP Rating:
- IP68
