Please Note: Gallagher products must be installed by a Gallagher-certified installer. A subscription may also be required.

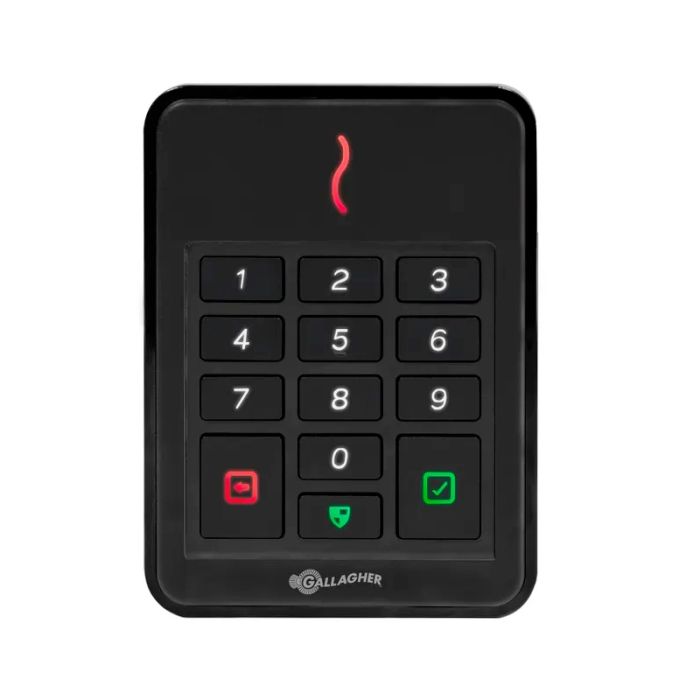

C300490 Gallagher T30 Multi Tech Keypad Reader Black
The Gallagher C300490 T30 Multi Tech Keypad Reader Black combines keypad operation with contactless credential support for secure access control. It is compatible with MIFARE Classic, MIFARE Plus and MIFARE DESFire EV1, EV2 and EV3 technologies, while Gallagher Mobile Connect support enables Bluetooth Low Energy and NFC mobile credentials.
Designed for environmentally challenging locations, the black T30 Reader carries an IP68 environmental protection rating and an IK09 impact rating. Its robust construction makes it well suited to exposed and demanding entry points within Gallagher security installations.
Key Features
- Card and PIN access control provides an additional layer of entry security
- Dedicated arming key and alarm-zone status indication support clear local security operation
- Secure HBUS communications and upgradeability support dependable system integration
- Integrated rear optical tamper helps identify interference with the installed reader
- Surface and flush-box mounting options accommodate different installation requirements
LIMITED LIFETIME
- Catalogue Family:
- READERS
- Model:
- C300490
- Product Type:
- MULTI TECH KEYPAD READER
- Colour:
- BLACK
- Credential Support:
- Bluetooth low energy mobile credentials for C300490/C300491; NFC mobile credentials for all variants
- Voltage:
- 13.6 VDC
- Current:
- 130 MA INACTIVE; 210 MA ACTIVE AT 13.6 VDC
- Temperature Range:
- -35 deg C to +70 deg C
- Humidity:
- 93% RH AT +40 DEG C AND 97% RH AT +25 DEG C
- Environmental Protection:
- IP68
- Impact Rating:
- IK09
- Dimensions:
- 118.0 x 86.0 x 26.7 mm
- Compatibility:
- Command Centre vEL8.30.1236 Maintenance Release 1 or later
- Maximum Readers On One Controller 6000:
- 20
- Series:
- SMB T30
- Connection:
- RS485 HBUS
- IK Rating:
- IK09
- Power:
- 13.6VDC
- Authentication Type:
- CARD / PIN / MOBILE CREDENTIAL
- Card Type:
- MIFARE DESFIRE EV1/EV2
- IP Rating:
- IP68
