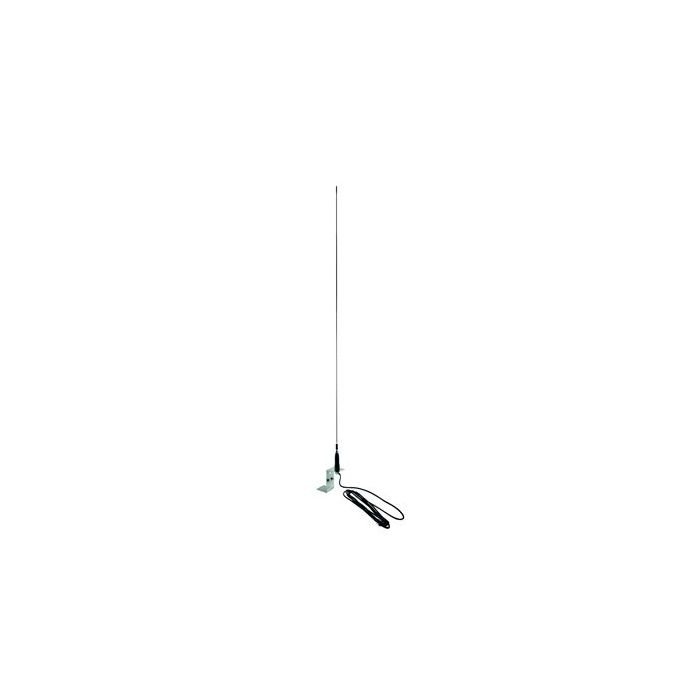

ANT151M Elsema 151 MHz Antenna - 1 m
The ANT151M is a 151 MHz antenna supplied with coaxial cable, mounting bracket and PL259 connector. The ANT151M is a stainless steel high-gain antenna tuned for 151 MHz radio systems, with a weatherproof enclosure for outdoor installation.
Suitable for wall or roof mounting in compatible 151 MHz gate, telemetry, and remote control systems. Includes a 3.6 m coaxial cable and a universal mounting bracket.
Key Features
- High-gain 3.5 dBi design supports stronger 151 MHz radio links.
- Stainless steel construction and weatherproof casing suit exterior installations.
- Included mounting bracket supports wall or roof mounting choices.
- PL259 termination matches the antenna configuration.
- Omnidirectional pattern helps serve installations where signal direction can vary.
- Catalogue Family:
- CABLE
- Model:
- ANT151M
- Frequency:
- 148 to 153 MHz
- Tuned Bandwidth:
- 5 MHz
- Gain:
- 3.5 dBi
- Vswr:
- < 1.5:1 over 5 MHz
- Impedance:
- 50 ohms
- Length:
- 1.0 m
- Coaxial Length:
- 3.6 m
- Termination:
- PL259
- Product Type:
- Cable
