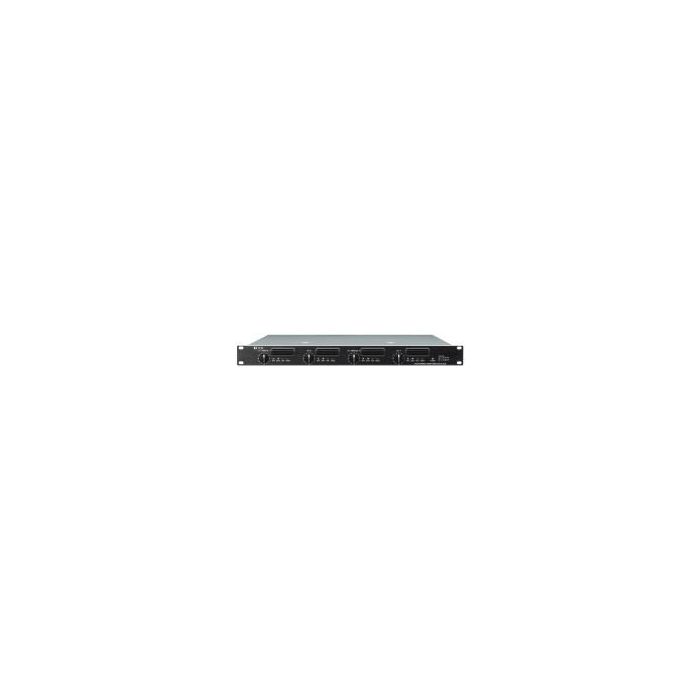

DA250FH TOA DA-250FH Multi-Channel Digital Power Amplifier - 4 x 250 W 70 V Line
The TOA DA-250FH is a four-channel digital power amplifier for high-impedance speaker line applications. It delivers 250 W per channel on a 70 V line at 19.6 ohm, features Class D amplification and is housed in a compact 1U rack-mount chassis.
Designed for multi-zone installed audio systems, the amplifier supports bridge and channel mode switching, electronically balanced inputs and selectable high-pass filter settings.
Key Features
- Four-channel design supports separate speaker zones and flexible system configuration.
- Class D amplification provides efficient performance in a compact 1U rack format.
- Bridge and channel mode switching supports a range of installation requirements.
- Electronically balanced removable-terminal inputs suit fixed installation wiring.
- Selectable high-pass filter supports system optimisation for the DA-250FH.
- Catalogue Family:
- AMPLIFIERS
- Product Type:
- Amplifiers
- Power Source:
- 120 V AC, 50/60 Hz
- Rated Output:
- 4 channels: 250 W x 4 (70 V line, 19.6 ohm)
- Frequency Response:
- 20 Hz to 20 kHz (+/-1 dB), HPF off
- Inputs:
- Electronically balanced 3-pin removable terminal block
- Output Mode:
- 4-channel, 3-channel or 2-channel bridge modes
- Dimensions:
- 482 (W) x 44 (H) x 401.8 (D) mm
- Weight:
- 6.6 kg
