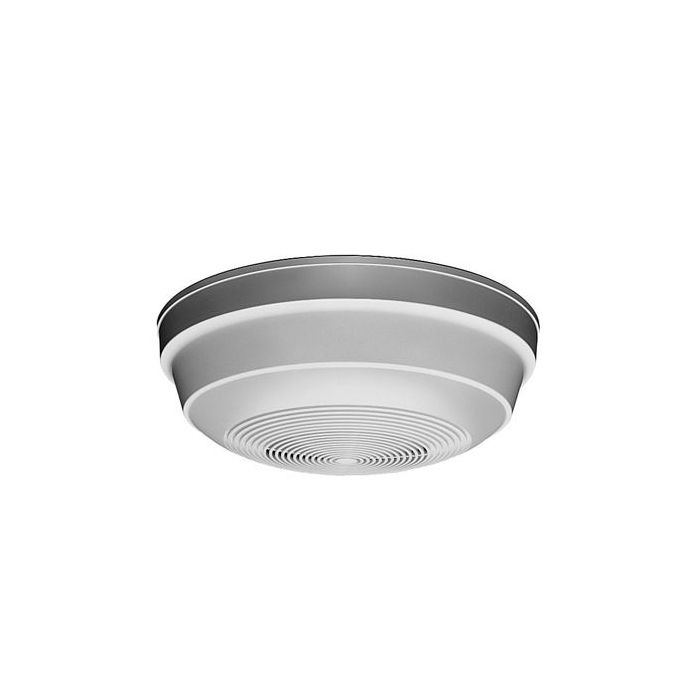

PC-2668 TOA 6W Ceiling Speaker
The PC-2668 is a TOA 6 W ceiling speaker for 100 V line installations, with 3 W operation on 70 V line systems. It uses a 12 cm cone-type driver, spring catch mounting and a push-in connector with two-branch bridging terminal support.
Its off-white ABS baffle and exposed round form are intended for interior ceiling public address work where a simple ceiling speaker is required. The supplied mounting bracket and spring catch arrangement support straightforward fitting into prepared locations.
Key Features
- Compact ceiling format supports distributed sound without large visible hardware.
- Spring catch mounting helps make installation repeatable across multiple speakers.
- Bridging terminal support assists loop-through speaker-line layouts.
- Multiple tap settings allow output to suit the zone design.
- Off-white finish helps the speaker sit quietly in standard ceiling interiors.
- Catalogue Family:
- SPEAKERS
- Model:
- PC-2668
- Rated Input:
- 6 W (100 V LINE), 3 W (70 V LINE)
- Rated Impedance:
- 100 V LINE: 1.7 KOHM (6 W), 3.3 KOHM (3 W), 6.7 KOHM (1.5 W), 13 KOHM (0.8 W); 70 V LINE: 1.7 KOHM (3 W), 3.3 KOHM (1.5 W), 6.7 KOHM (0.8 W), 13 KOHM (0.4 W)
- Sound Pressure Level:
- 90 dB (1 W, 1 m, 330 - 3300 Hz pink noise)
- Frequency Response:
- 100 HZ - 16 KHZ
- Speaker Component:
- 12 CM (5 INCH) DYNAMIC CONE-TYPE SPEAKER
- Mounting Method:
- Spring catch
- Connection:
- Push-in connector with bridging terminal
- Finish:
- ABS RESIN BAFFLE, OFF-WHITE
- Dimensions:
- Diameter 260 x 92 D mm exposed section
- Weight:
- 820 g including bracket
- Product Type:
- SPEAKERS
