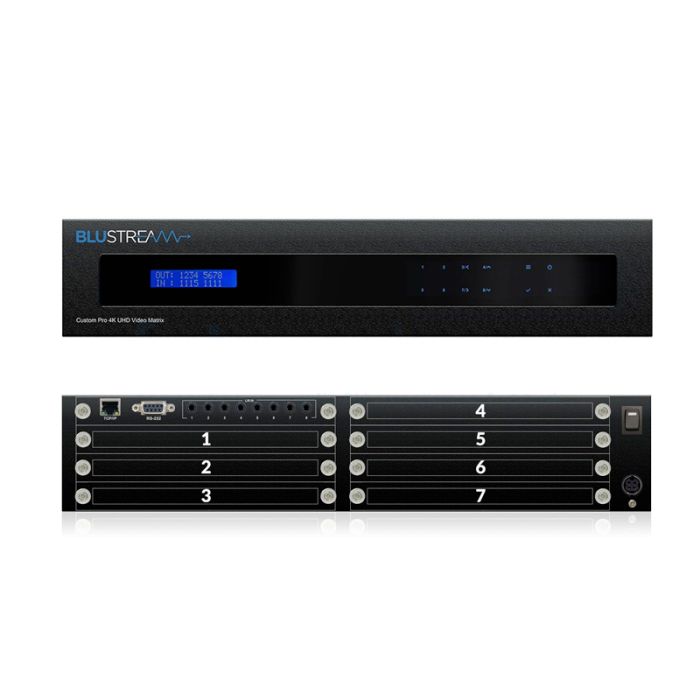

Blustream CUSTOMPRO-HUB Custom Pro Matrix Hub (8x8)
The Blustream CUSTOMPRO-HUB is an 8x8 modular matrix chassis designed for professional AV installations. It allows the input and output configuration to be customised using interchangeable modular boards and supports a range of optional control and feature boards to suit individual project requirements.
It provides a flexible platform for HDMI and HDBaseT signal distribution with advanced EDID management, web browser configuration, and support for front panel, RS-232, TCP/IP and app-based control. Optional feature boards support functions including IR routing, audio breakout and RS-232 pass-through depending on the system configuration.
Key Features
- 8x8 modular matrix chassis for configurable AV installations.
- Supports interchangeable 2-way and 4-way input and output boards.
- Advanced EDID management.
- Supports front panel, RS-232, TCP/IP and web interface control.
- Compatible with optional feature boards including IR routing, audio breakout and RS-232 pass-through.
- Designed for integration with HDMI and HDBaseT modular boards.
- Catalogue Family:
- SPLITTERS & EXTENDERS
- Model:
- CUSTOMPROHUB
- Product Type:
- Splitters & Extenders
- Board Structure:
- 2-way and 4-way interchangeable input and output boards
