C44-KIT Contractor 4x4 HDBaseT™ Matrix Kit

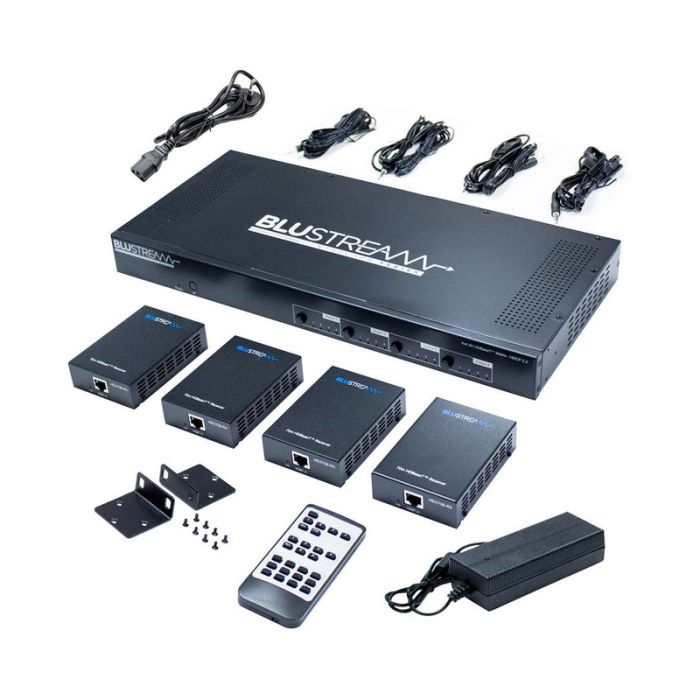

The C44-KIT is a Contractor 4x4 HDBaseT™ matrix package for routing four HDMI sources to four HDBaseT™ zones. It supports 4K HDCP 2.2 distribution, bi-directional IR and PoC over a single CAT cable, and is supplied with four HEX70B receivers.
Designed for custom installation projects, the matrix gives installers centralised routing, control and configuration through front panel, IR, RS-232, TCP/IP and a web browser interface. Simultaneous HDMI and HDBaseT™ on output 1 adds flexibility where a local display or linked zone is required.
Key Features
- Centralises four-source to four-zone HDMI distribution for structured AV installs.
- Single-cable HDBaseT™ delivery helps reduce cabling complexity across rooms.
- Multiple control paths support integration with local controls and third-party systems.
- Built-in web configuration gives installers a clearer path for setup and adjustment.
- Output flexibility helps accommodate both local display and distributed-zone requirements.
- Catalogue Family:
- POWER SUPPLY
- Model:
- C44-KIT
- Product Type:
- Power Supply
- Video Inputs:
- 4 x HDMI Type A
- Video Outputs:
- 1 x HDMI Type A and 4 x HDBaseT™ RJ45
- Transmission Distance:
- HDMI up to 70 m over single CAT cable; 4K UHD up to 40 m
- Control:
- Front panel, IR, RS-232 and TCP/IP
- Hdcp Support:
- HDCP 2.2
- Dimensions:
- 440 x 202 x 52 mm
- Rack Height:
- 1U, rack ears included
- Power Supply:
- 24 V/6 A DC, 4-pin DIN
