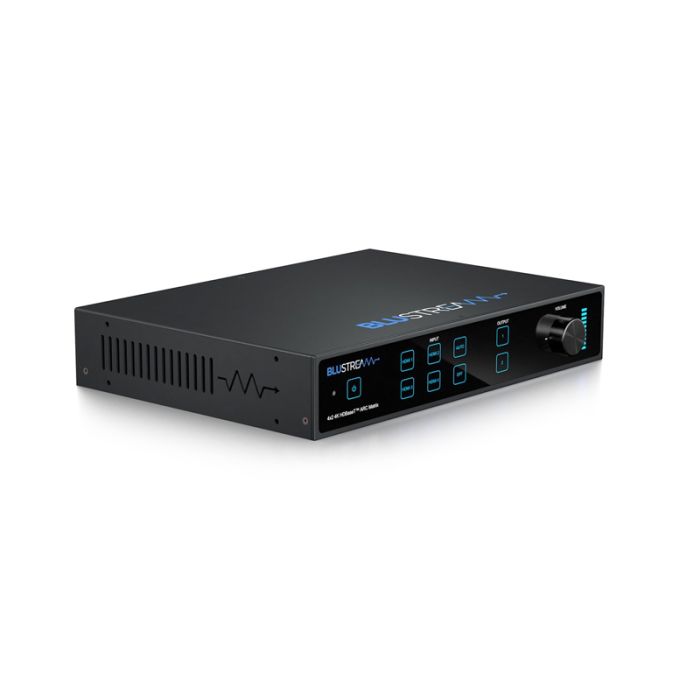

HMXL42ARC-KIT 4x2 HDBaseT™ CSC Matrix Kit
The HMXL42ARC-KIT is a 4x2 HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 matrix package using CSC technology. It routes four HDMI inputs to two HDBaseT™ outputs, supports simultaneous HDMI and HDBaseT™ on output 1, and is supplied with two RX70CS receivers.
The matrix is designed for custom installations that need source routing, HDBaseT™ extension, audio matrix control and web-based configuration in one compact 1U system. Smart Scaling on HDBaseT™ outputs helps mixed display environments receive usable signals while maintaining higher-resolution distribution elsewhere.
Key Features
- Combines compact matrix routing and HDBaseT™ extension for two-zone AV systems.
- CSC and Smart Scaling help manage mixed 4K display capability across outputs.
- Independent audio matrix functions support more flexible room audio design.
- Web, RS-232, TCP/IP and IR control options fit common integration workflows.
- Supplied receivers reduce uncertainty when specifying the HDBaseT™ zone endpoints.
- Catalogue Family:
- POWER SUPPLY
- Model:
- HMXL42ARC-KIT
- Product Type:
- Power Supply
- Video Inputs:
- 4 x HDMI Type A
- Video Outputs:
- 1 x HDMI Type A and 2 x HDBaseT™ RJ45
- Video Distance:
- 4K 60Hz 4:4:4 up to 40 m; 1080p up to 70 m
- Audio Matrix:
- 8 x 2 independently controllable audio matrix
- Control:
- Web interface, RS-232, TCP/IP and IR
- Dimensions:
- 220 x 235 x 44 mm without feet
- Rack Height:
- 1U, rack ears included
- Power Supply:
- 24 V/5 A DC
