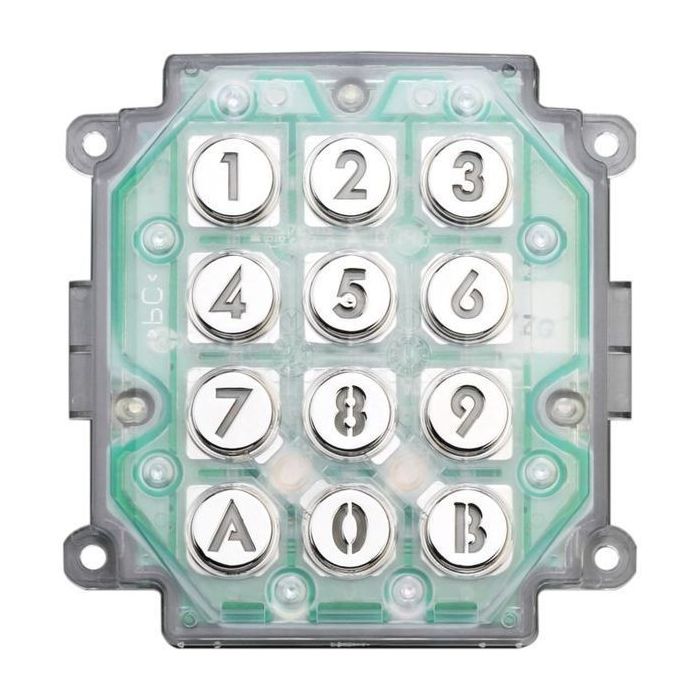

AC-10U Aiphone AC Series Access Control Keypad Module
The AC-10U is an Aiphone AC Series access control keypad module designed for custom panel applications. It supports up to 100 user codes, two independent relay outputs and 12-24V AC/DC operation.
Designed for custom panel integration, the keypad provides programmable code access, request-to-exit input logic, relay control, lockout and auto-relock settings for access control installations.
Key Features
- Module-only design for custom panel integration.
- Supports up to 100 user access codes.
- Two independent relay outputs for lock, gate or auxiliary device control.
- Programmable lockout and auto-relock functions.
- Operates from 12-24V AC or DC power.
- Catalogue Family:
- ALARM SWITCH
- Model:
- AC-10U
- Product Type:
- Alarm Switch
- Panel Format:
- Numeric keypad available without a panel for custom panel design
- Power Source:
- 12-24V AC or 12-24V DC
- Consumption:
- AC max. 100 mA; DC max. 70 mA
- Relay Outputs:
- 2
- Relay Contact:
- Dry contact, normally open or normally closed
- Contact Rating:
- 24V AC/DC, 3A resistive load or 1A inductive load
- Relay Operating Time:
- 1 to 99 seconds
- Access Codes:
- Up to 100 (relay 1: 60, relay 2: 40)
- Code Length:
- 4, 5 or 6 digits
- Wiring:
- Two conductors
