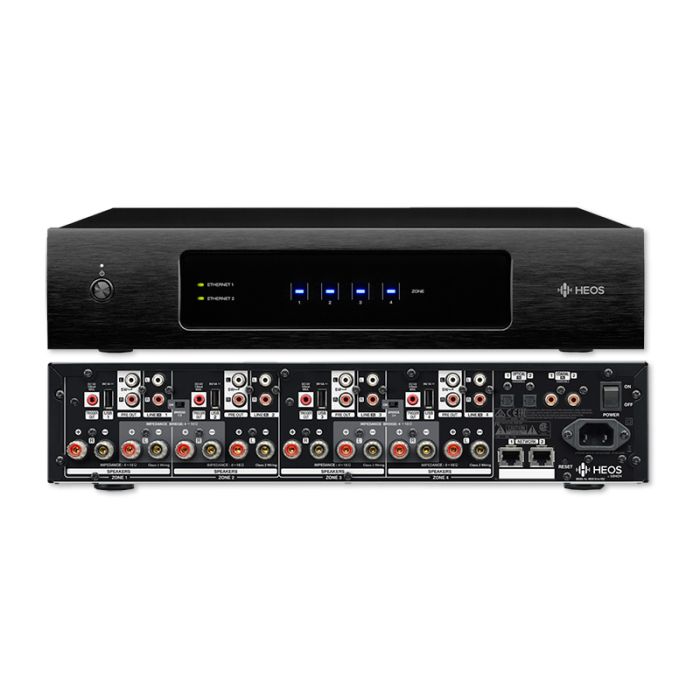

HEOSDRIVE2 Denon HEOS Drive HS2 Networked Multi-Room Amplifier - 4 Zone 8 Channel
The HEOSDRIVE2 is the Denon HEOS Drive HS2, a networked multi-room amplifier designed for whole-home audio distribution. It provides four independent HEOS zones, eight channels of Class D amplification, 2U rack height and HEOS app control over an existing home network.
Designed with custom integration in mind, the HEOS Drive HS2 brings amplified zones, matrixable inputs, wired Ethernet and rack-mount installation into a single chassis. It suits distributed audio projects where installers need centralised equipment, flexible source handling and dependable multi-room control.
Key Features
- Four amplified HEOS zones support centralised whole-home audio distribution
- Class D amplification keeps the multi-zone chassis compact and installation friendly
- Bridge mode gives installers a higher-output option where a zone requires it
- Dual Ethernet connectivity supports reliable wired network integration
- 2U rack format suits structured custom-install equipment locations
- Catalogue Family:
- POWER SUPPLY
- Model:
- HEOS Drive HS2
- Zones:
- 4 independent amplified HEOS zones
- Amplification:
- 8 channel Class D
- Power Output:
- 8 x 60 W, 20 Hz - 20 kHz, 0.05% THD, 8 ohms, all channels driven
- Bridge Mode:
- 130 W per channel
- Dimensions Without Rack Ears:
- 88 x 430 x 402 mm
- Dimensions with Rack Ears:
- 88 x 483 x 402 mm
- Power Supply:
- 100 - 240 V AC, 50 - 60 Hz
- Weight:
- 7.2 kg
- Product Type:
- Power Supply
