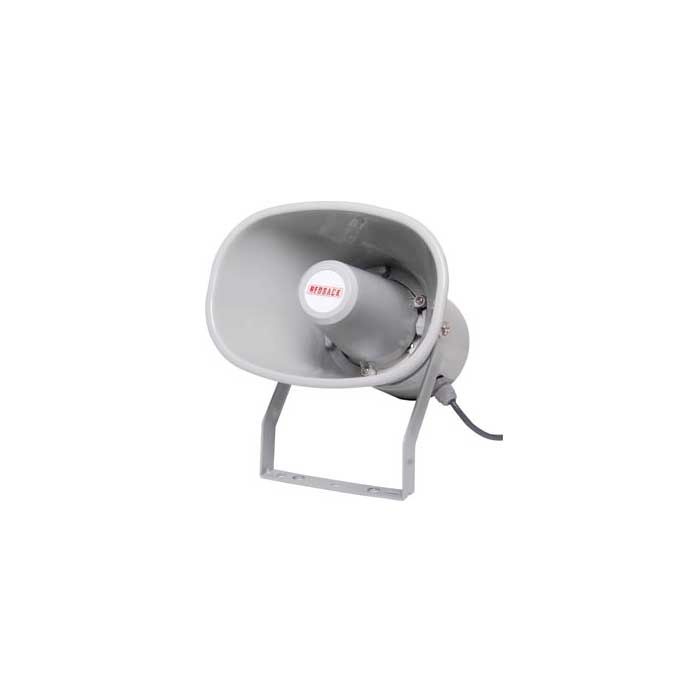

C2050 10W 100V Line IP66 ABS Horn Speaker - Grey
The C2050 is a Redback 10W 100V line IP66 ABS horn speaker in grey. It provides a weatherproof EWIS dog-leg horn speaker with selectable 1.25W, 2.5W, 5W, 7.5W and 10W power taps, 104dB SPL at 1W/1m and 114dB SPL at max tap.
It is designed for distributed paging systems where speech intelligibility and program clarity are important, including car parks, plant rooms, industrial plants, schools, transport stations and airports. The dog-leg bracket design supports faster installation by avoiding bracket removal during mounting.
Key Features
- Supports commercial 100V paging with selectable power taps.
- Provides weather-resistant horn-speaker performance in an IP66 ABS body.
- Helps installation speed through the Redback dog-leg mounting design.
- Supports EWIS line monitoring through the fitted bipolar capacitor.
- Balances speech projection and compact mounting depth for public-address sites.
- Catalogue Family:
- PATCH LEAD
- Model:
- C2050
- Power Taps:
- 1.25W, 2.5W, 5W, 7.5W, 10W
- SPL 1 W @ 1m:
- 104dB at 1kHz (+/- 2dB)
- SPL Max Tap @ 1m:
- 114dB at 1kHz (+/- 2dB)
- Frequency Response:
- 340Hz-10kHz
- Connection:
- 4 core fly lead
- Ewis Line Monitoring:
- 22uF bipolar capacitor fitted
- Dispersion Angle @ 1khz:
- 160 degrees vertical, 130 degrees horizontal
- Mounting Depth:
- 255mm
- Overall Weight:
- 1.2kg
- Environmental Rating:
- IP66
- Product Type:
- Patch Lead
