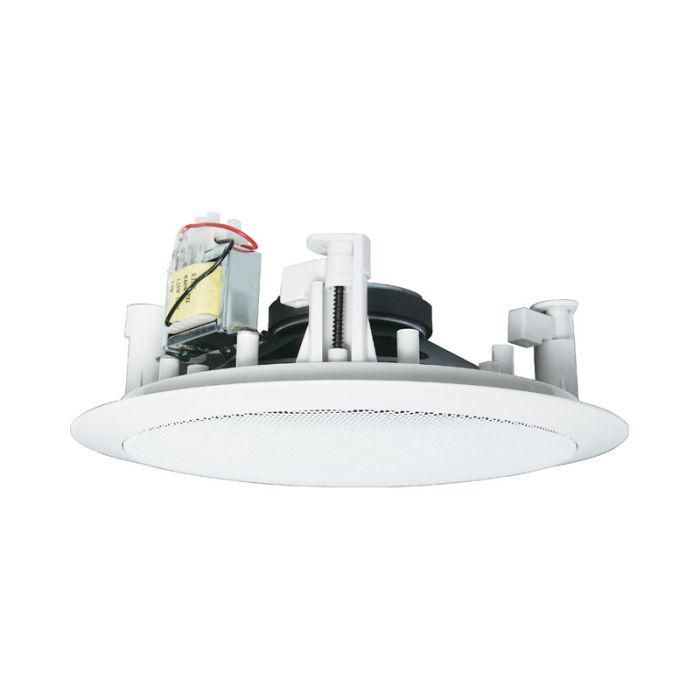

C2123 165mm 100V 5W Twin Cone Fast-Fix Ceiling Speaker
The C2123 is a Redback 165mm (6.5 inch) 100V 5W twin cone Fast-Fix ceiling speaker for general public address, BGM and paging installations. It uses a flip-lock mounting system, offset transformer, ABS surround and steel mesh grille.
It is suited to offices, retail and hospitality installations where a clean ceiling finish and reduced installation time are important. The Fast-Fix tabs secure from above the ceiling material and suit 8-33mm ceiling tile thickness with a recommended 195mm hole.
Key Features
- Supports fast ceiling installation through the flip-lock mounting system.
- Provides a clean finished look with no visible screw heads or caps.
- Suits common PA, BGM and paging applications in commercial interiors.
- Uses an offset transformer to reduce required mounting depth.
- Provides selectable transformer taps for matching speaker load requirements.
- Catalogue Family:
- SPEAKERS
- Model:
- C2123
- Power Taps:
- 0.33W, 0.66W, 1.25W, 2.5W, 5W
- SPL 1 W @ 1m:
- 91dB at 1kHz (+/- 2dB)
- Frequency Response:
- 90Hz-20kHz
- Connection:
- 2-way terminal block
- Grille Material:
- ABS surround, steel mesh grille
- Ceiling Cutout:
- 195mm diameter
- Grille Diameter:
- 228mm diameter
- Mounting Depth:
- 68mm including ceiling tile thickness
- Overall Weight:
- 1kg
- Colour:
- White
- Product Type:
- Speakers
