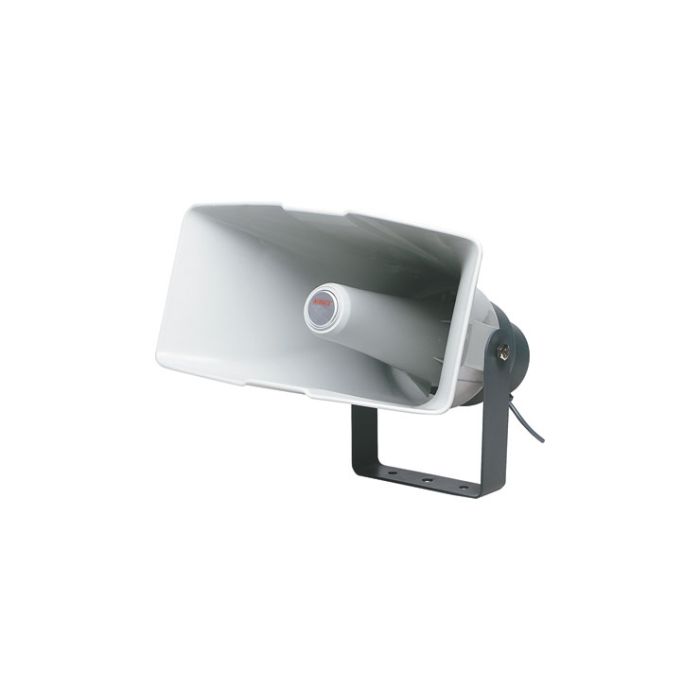

C2059 40W 100V Line IP65 ABS Horn Speaker
The C2059 is a Redback 40W 100V line IP65 rated horn speaker with UV stabilised high-impact ABS construction. It includes selectable 5W, 10W, 20W, 30W and 40W power taps, 112dB SPL at 1W/1m and 128.5dB SPL at full power.
It is intended for indoor or outdoor commercial PA applications such as sports stadiums, train station platforms, shopping centres and aquatic arenas. The rotary rear power-tap switch and supplied bracket hardware support straightforward site adjustment and installation.
Key Features
- Provides high-output 100V horn coverage for larger PA areas.
- Supports indoor or outdoor installations through its IP65 ABS housing.
- Allows output matching with selectable transformer power taps.
- Helps speech projection in busy public and commercial environments.
- Keeps tap selection accessible through the rear rotary switch.
- Catalogue Family:
- SPEAKERS
- Model:
- C2059
- Power Taps:
- 5W, 10W, 20W, 30W, 40W
- SPL 1 W @ 1m:
- 112dB at 1kHz (+/- 2dB)
- SPL Full Power @ 1m:
- 128.5dB at 1kHz (+/- 2dB)
- Frequency Response:
- 180Hz-7kHz
- Transformer Impedance:
- 2k Ohm / 1k Ohm / 500 Ohm / 330 Ohm / 250 Ohm
- Connection:
- Bare wire
- Housing Construction:
- ABS
- Dimensions:
- 400 x 200 x 420mm
- Overall Weight:
- 3.9kg
- Environmental Rating:
- IP65
- Product Type:
- Speakers
