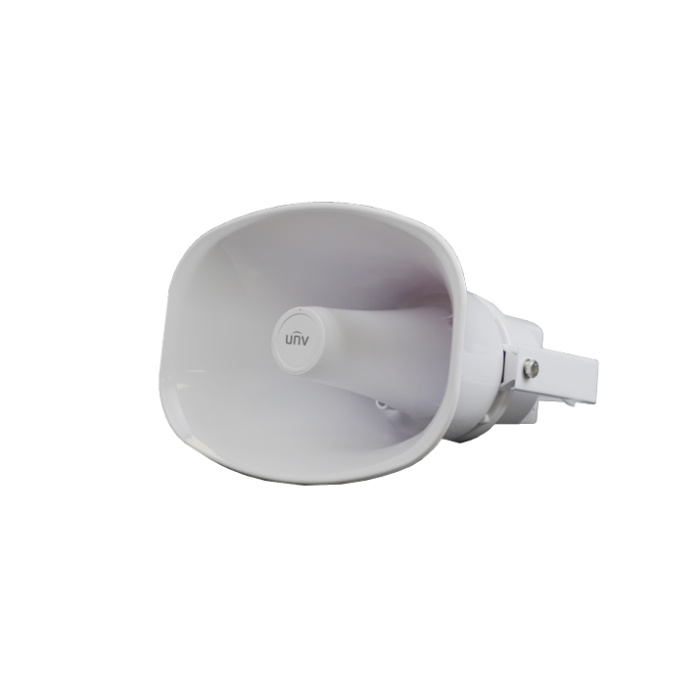

UNVIPS302030-S Uniview IPS302030-S 30W Horn IP Speaker with Built-In Microphone
The UNVIPS302030-S is a Uniview 30 W horn IP speaker with a built-in microphone and ABS plastic construction. It provides 130 dBSPL maximum acoustic pressure, 300 Hz to 12.5 kHz speaker response, PoE or DC power options, two-way audio and IP66 protection.
It is suited to higher-output IP public-address points where clear broadcast, alarm linkage and central network management are required. The built-in storage and support for regular, live and alarm broadcast modes help the speaker work as part of a broader Uniview audio and video security system.
Key Features
- Higher 30 W output supports stronger horn-speaker broadcast coverage.
- Network operation fits centrally managed IP audio systems.
- Two-way audio support adds interaction beyond one-way announcements.
- Built-in audio storage enables custom message playback.
- IP66 protection supports outdoor or exposed installation planning.
- Catalogue Family:
- POWER SUPPLY
- Model:
- IPS302030-S
- Speaker Type:
- Horn IP speaker
- Rated Power:
- 30 W
- Maximum Acoustic Pressure:
- 130 dBSPL
- Frequency Response:
- 300 Hz to 12.5 kHz
- Material:
- Plastic
- Network Interface:
- 1 x RJ45 10/100 self-adaptive Ethernet
- Two-Way Audio:
- Support
- Audio File Storage:
- 64 MB
- Protection:
- IP66
- Power Supply:
- PoE (IEEE 802.3at), DC 24 V/1.4 A, DC 12 V/2.5 A
- Operating Temperature:
- -30 to 55 C
- Dimensions:
- 282 x 205 x 285 mm
- Product Type:
- Power Supply
