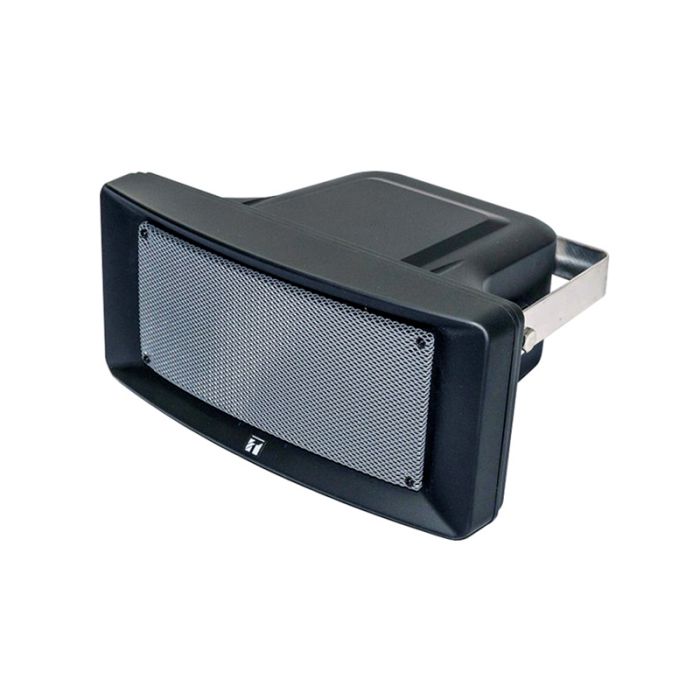

CS304BK TOA CS-304 Wide Range Weatherproof Horn Speaker - 30 W
The CS304BK is a TOA CS-304 wide range weatherproof horn speaker with a 30 W rated input for voice paging, background music and tone signalling applications. It features a 12 cm cone-type speaker, a constant-directivity horn and an IP65-rated enclosure for outdoor use.
Designed for outdoor and weather-exposed installations, the speaker provides wide-range audio reproduction with clear speech coverage. A rotary impedance selector allows easy matching to 100 V line systems, while stainless steel hardware enhances durability in exposed environments.
Key Features
- Wide-range horn design supports voice paging, background music and tone signalling.
- Constant-directivity horn provides 90-degree sound dispersion.
- IP65-rated enclosure is suitable for outdoor and weather-exposed installations.
- Rotary impedance selector simplifies matching to 100 V line systems.
- Stainless steel mounting hardware enhances corrosion resistance.
- Catalogue Family:
- SPEAKERS
- Product Type:
- Speakers
- Rated Input:
- 30 W
- Rated Impedance:
- 100 V line: 330 ohm (30 W), 500 ohm (20 W), 1 kohm (10 W)
- Sensitivity:
- 98 dB (1 W, 1 m)
- Frequency Response:
- 120 Hz to 15 kHz
- Directivity:
- Constant directivity horn, 90 degrees
- Speaker Component:
- 12 cm cone-type
- Protection:
- IP65
- Dimensions:
- 366 (W) x 230 (H) x 272 (D) mm
- Weight:
- 3.1 kg
