JACKFUSE

ATMOD YELLOW 4K7/4K7 RESISTOR

SKU: JKFATMOD47 Supplier SKU: ATMOD47
Width:
7.00 (cm)
Height:
8.00 (cm)
Depth:
24.00 (cm)
Minimum Purchase:
48 units

KEY FEATURES

Product Downloads

Description
Download
ATMOD47 Datasheet
ATMOD47 Installation Manual

Please Note: Minimum order quantity (MOQ) 48 units.

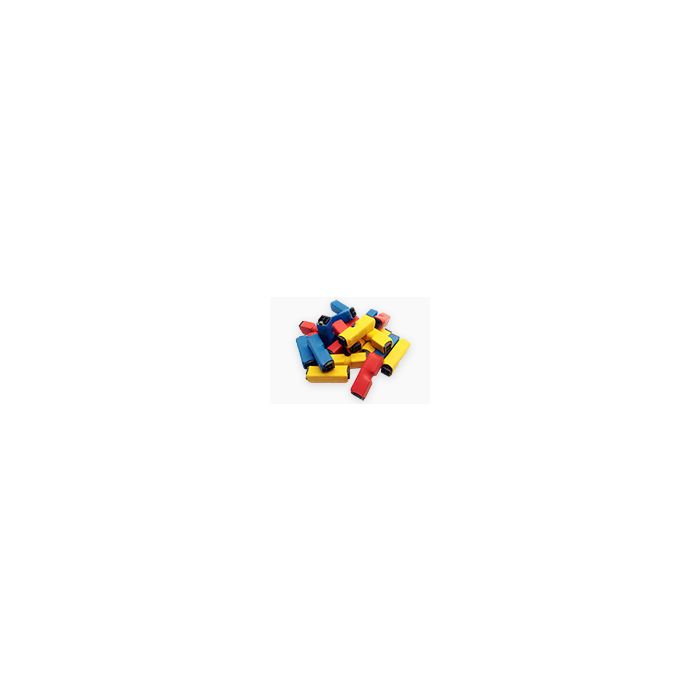

ATMOD47 Advanced Termination Module 4K7/4K7 EOL Resistor Pack - Yellow

The ATMOD47 is the yellow 4K7/4K7 variant in the ATMOD range, combining surface-mount resistors on a pre-built PCB with quick-connect push-in terminals. Designed for end-of-line circuits in alarm and access control wiring, this compact resistor pack replaces traditional resistor networks and uses an orientation tab to identify the end connected to the alarm device.

Listed for Gallagher systems, the ATMOD47 can terminate standard security cabling and fly leads from devices such as reed switches, electric locks and exit buttons. Its insulated construction fits inside most alarm devices, door frames and duct, with the option to prepare field devices in the workshop for faster installation on site.

Key Features

  • Simplifies EOL circuit preparation for new installations, replacements and system upgrades
  • Makes the required resistor configuration easier to recognise during installation and servicing
  • Allows field devices to be prepared in the workshop before technicians attend site
  • Supports neat, concealed placement within or close to the monitored device
  • Reusable design assists future maintenance and wiring changes
Catalogue Family:
TOOLS & INSTALLATION ACCESSORIES
Product Type:
RESISTOR MODULE
Resistor Value:
4K7/4K7
Colour:
YELLOW
Minimum Conductor Size:
0.2 mm2 stranded (24AWG)
Maximum Conductor Size:
0.5 mm2 (20AWG)
Dimensions:
24 L x 7 W x 8 H mm
Application:
SECURITY ALARM AND ACCESS CONTROL EOL RESISTOR CIRCUITS
Country of Origin:
China
Series:
ATMOD
Features:
4K7/4K7
