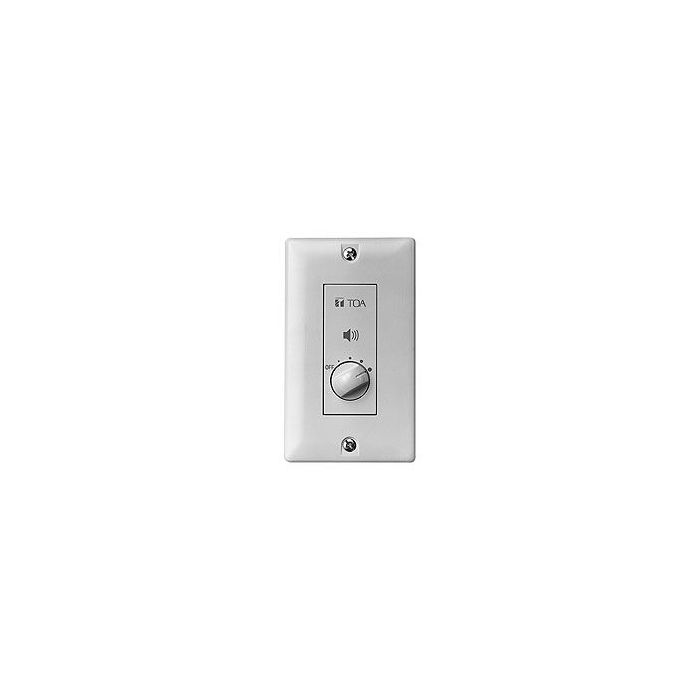

AT063P TOA AT-063P Flush-Mounted Attenuator - 6 W
The TOA AT-063P is a flush-mounted wall attenuator for speaker line volume control. It supports loads from 0.5 W to 6 W, features five-step attenuation and uses push-in terminals that accept two conductors for easy bridging.
Designed for distributed speaker installations requiring local wall-mounted volume adjustment. The attenuator features an ABS resin finish and a flush-mounted design for a neat installation.
Key Features
- Flush-mounted wall design provides convenient local speaker volume control.
- Five-step attenuation offers simple and repeatable level adjustment.
- Push-in bridging terminals support efficient speaker-line wiring.
- ABS resin construction provides a durable milky-white wall plate with a black case.
- Supports speaker loads from 0.5 W to 6 W.
- Catalogue Family:
- CABLE
- Product Type:
- Cable
- Input Capacity:
- 0.5 W to 6 W
- Attenuation:
- 5 steps: 0 dB, -6 dB, -12 dB, -18 dB, OFF
- Terminal:
- Push-in connector, bridging terminal
- Usable Cable:
- 600 V vinyl-insulated cable
- Solid Cable:
- 0.8 to 1.2 mm diameter
- Stranded Cable:
- 0.75 to 1.25 mm2, 7 cores
- Finish:
- Knob, panel, plate: ABS resin, milky white; case: ABS resin, black
- Dimensions:
- 45 (W) x 108 (H) x 55 (D) mm
