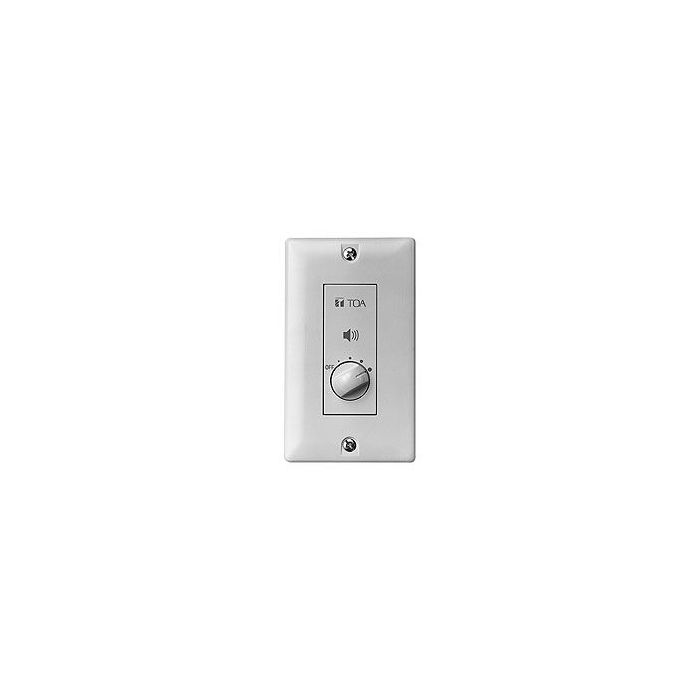

AT303P TOA AT-303P Flush-Mounted Attenuator - 30 W
The TOA AT-303P is a flush-mounted wall attenuator in the AT Series. It features a 0.5 W to 30 W input capacity, five-step attenuation and a push-in bridging terminal for speaker line wiring.
It is suited to installed PA systems where a local wall control is needed for medium speaker loads. It also supports recessed or surface electrical box mounting and the shared ABS resin finish details.
Key Features
- 30 W capacity suits speaker zones requiring more attenuation headroom.
- Five-step control provides predictable local volume adjustment.
- Push-in terminals support faster connection and bridge wiring.
- Flush mounting supports a clean wall-control finish.
- Shared AT Series dimensions simplify planning across attenuator ratings.
- Catalogue Family:
- ACCESSORIES
- Product Type:
- Accessories
- Input Capacity:
- 0.5 W to 30 W
- Attenuation:
- 5 steps: 0 dB, -6 dB, -12 dB, -18 dB, OFF
- Terminal:
- Push-in connection, bridging terminal, 2-branch type
- Applicable Cable:
- 600 V vinyl-insulated cable, IV or HIV
- Solid Copper Wire:
- 0.8 to 1.2 mm diameter
- Stranded Copper Wire:
- 0.75 to 1.25 mm2, 7-core
- Finish:
- Knob, panel, plate: ABS resin, milky white; main body: ABS resin, black
- Dimensions:
- 45 (W) x 108 (H) x 55 (D) mm
