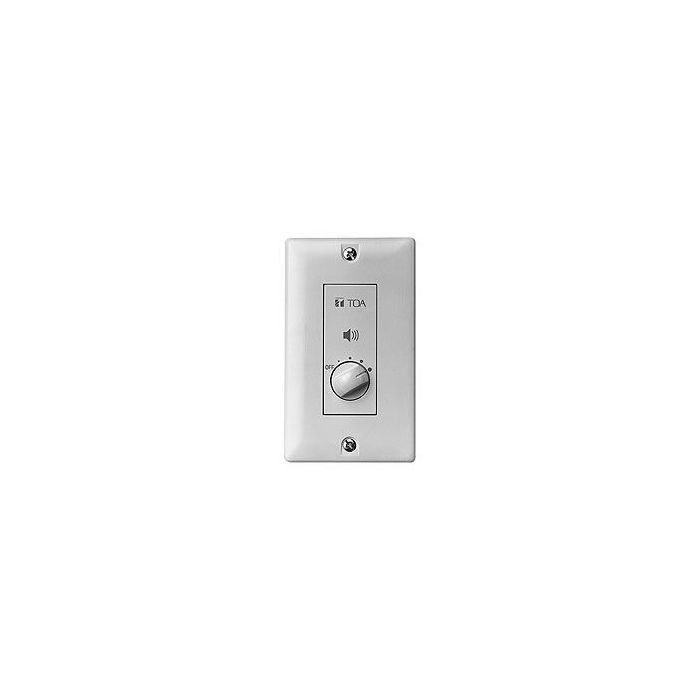

AT603P TOA AT-603P Flush-Mounted Attenuator - 60 W
The TOA AT-603P is a 60 W flush-mounted wall attenuator in the AT Series. It features a 0.5 W to 60 W input capacity, five-step attenuation and push-in bridging terminals for speaker line connections.
Designed for distributed speaker systems, it provides local volume adjustment and supports flush or surface electrical-box mounting for installation flexibility.
Key Features
- 60 W input capacity for higher speaker-line load requirements.
- Five-step attenuation for simple local volume control.
- Push-in bridging terminals for efficient loop-through wiring.
- Compatible with flush or surface electrical-box mounting.
- Suitable for distributed speaker systems requiring local volume adjustment.
- Catalogue Family:
- ACCESSORIES
- Product Type:
- Accessories
- Input Capacity:
- 0.5 W to 60 W
- Attenuation:
- 5 steps: 0 dB, -6 dB, -12 dB, -18 dB, OFF
- Terminal:
- Push-in connection, bridging terminal, 2-branch type
- Applicable Cable:
- 600 V vinyl-insulated cable, IV or HIV
- Solid Copper Wire:
- 0.8 to 1.2 mm diameter
- Stranded Copper Wire:
- 0.75 to 1.25 mm², 7-core
- Finish:
- Knob, panel and plate: ABS resin, milky white; main body: ABS resin, black
- Dimensions:
- 45 (W) x 108 (H) x 55 (D) mm
