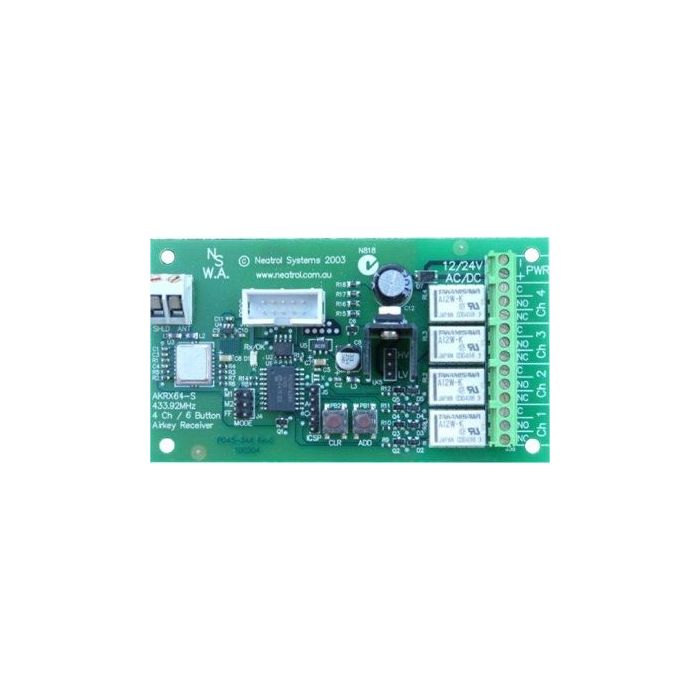

AKRX64-S Airkey 6-Button Input Stand-Alone Receiver
The AKRX64-S is an Airkey stand-alone remote access receiver with a microcontroller, non-volatile storage and a high-sensitivity PLL locked receiver module. It features six button inputs and four channel outputs for Airkey access control applications.
Operating at 433.92 MHz, the receiver supports remote learning, stores up to 340 Airkey transmitters and provides four SPDT relay outputs for multi-channel control. It is designed for reliable integration with compatible access control hardware.
Key Features
- High-sensitivity PLL locked receiver module for reliable 433.92 MHz reception.
- Non-volatile memory retains programmed Airkey transmitter data.
- Remote learning function simplifies transmitter programming and management.
- Stores up to 340 Airkey transmitters.
- Four SPDT relay outputs support multi-channel access control applications.
- Catalogue Family:
- TRANSMITTERS & RECEIVERS
- Model:
- AKRX64-S
- Product Type:
- Transmitters & Receivers
- Input/Output:
- 6 button input, 4 channel output
- Dimensions:
- 105 x 58 x 20 mm
- Weight:
- 45 g
- Receiver:
- 433.92 MHz ASK receiver, -114 dBm sensitivity
- Connections:
- 14-pin screw terminal connections
- Supply:
- 12-28 V AC/DC, approximately 40 mA
- Outputs:
- 4 x SPDT 1 A dry relay contact outputs
- Airkey Slot Capacity:
- 340
