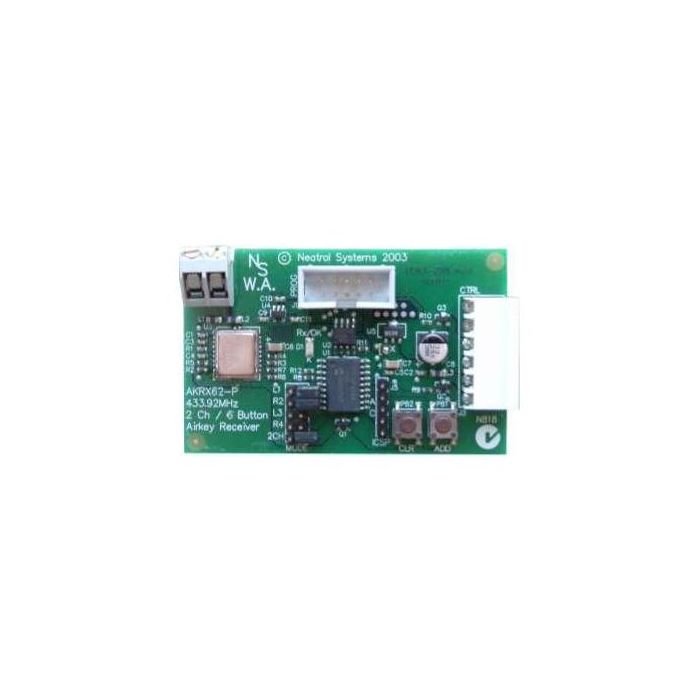

AKRX62-P Airkey 6-Button Input Plug-In Receiver
The AKRX62-P is an Airkey 6-button input plug-in receiver featuring a microcontroller with non-volatile storage and a high-sensitivity PLL-locked receiver module. It provides six button inputs and two-channel outputs for Airkey remote access systems.
Designed for Airkey remote access applications, the receiver supports stored transmitter credentials, remote learning and reliable 433.92 MHz operation. It is compatible with a range of gate controllers for straightforward integration with access control hardware.
Key Features
- High-sensitivity PLL-locked receiver module supports reliable 433.92 MHz reception.
- Non-volatile memory retains programmed transmitter data.
- Remote learning function simplifies transmitter programming and management.
- Stores up to 340 Airkey transmitters for multi-user access control systems.
- Compatible with supported management tools for editing, copying and restoring receiver data.
- Catalogue Family:
- TRANSMITTERS & RECEIVERS
- Model:
- AKRX62-P
- Product Type:
- Transmitters & Receivers
- Input/Output:
- 6 button input, 2 channel output
- Dimensions:
- 92 x 44 x 15 mm
- Weight:
- 25 g
- Receiver:
- 433.92 MHz ASK receiver, -114 dBm sensitivity
- Connections:
- 6-pin connector
- Supply:
- 9-16 VDC nominal, approximately 10 mA
- Outputs:
- Open-collector NPN transistor outputs
- Airkey Slot Capacity:
- 340
