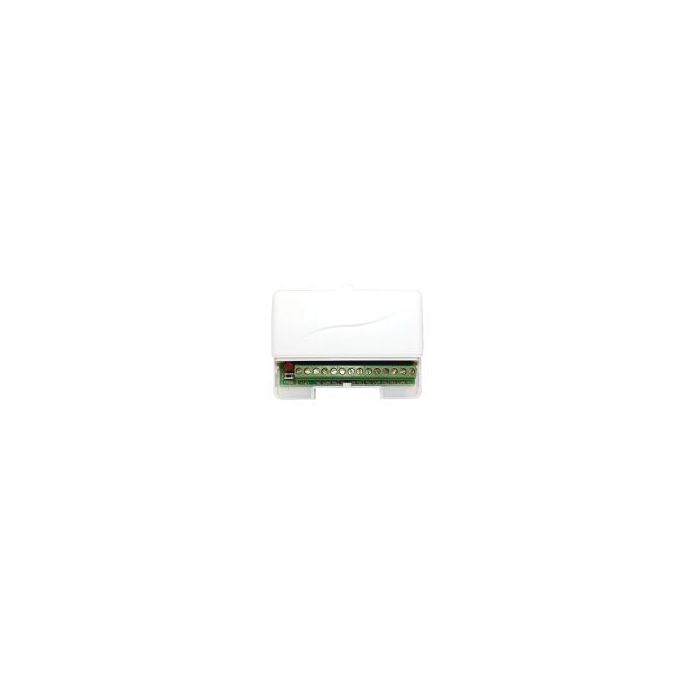

SPRR500 Activor 500 User Four Channel Stand Alone Receiver
The SPRR500 is an Activor four-channel stand-alone receiver with 4 relays and capacity for 500 users. It provides high-security Keeloq rolling-code operation, momentary, toggle or delay relay operation and an 87 x 63 x 27 mm receiver body.
It suits access-control and alarm-related remote switching where multiple relay outputs are needed without a separate Wiegand controller. Single-remote deletion, reverse power connection protection and a mounting plate support practical commissioning and maintenance.
Key Features
- Four-channel receiver format supports multiple controlled outputs
- 500-user capacity suits larger stand-alone remote-control applications
- Selectable relay operation gives installers flexibility across control tasks
- Single-remote deletion helps maintain access when a transmitter is lost
- Mounting plate supports quicker receiver installation on site
- Catalogue Family:
- TRANSMITTERS & RECEIVERS
- Relays:
- 4
- Users:
- 500
- Dimensions:
- 87 x 63 x 27 mm
- Operating Voltage:
- 9-15 VDC
- Current:
- 8 mA standby; 100 mA maximum
- Relay Output:
- NC and NO
- Operation Modes:
- Momentary, toggle or delay
- Coding:
- Keeloq rolling code
- Protection:
- Reverse power connection protection
- Product Type:
- Transmitters & Receivers
