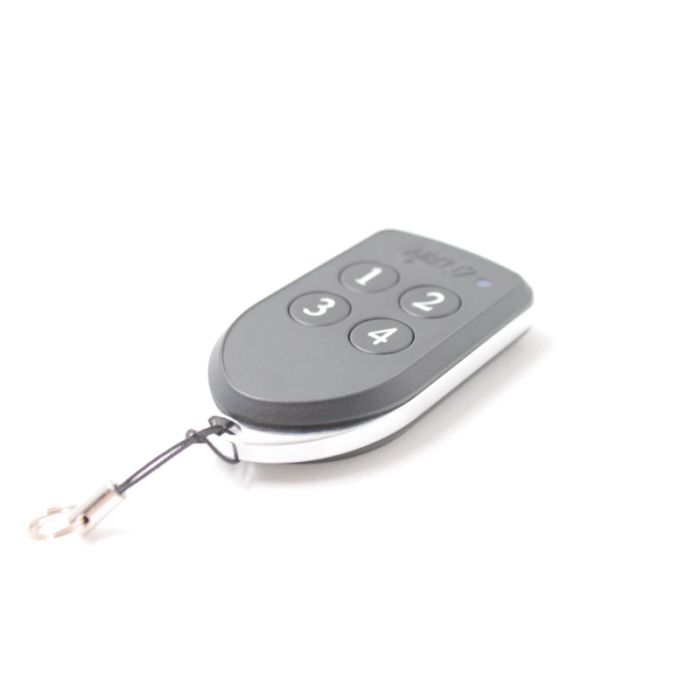

AK4-W26 Airkey Series 4 4 Button 26-bit Wiegand Remote Transmitter
The AK4-W26 is an Airkey Series 4 4-button remote control transmitter with 26-bit Wiegand output.
The Series 4 Airkey platform uses a redesigned case with improved sealing, a screw for easier opening and a diecast surround. Its custom programmed RF transmitter and microcontroller use rolling code encryption to help prevent recorded codes from being duplicated.
Key Features
- 4-button format supports multi-function remote access control use.
- 26-bit Wiegand variant aligns the transmitter with access-control receiver workflows.
- Rolling code encryption supports stronger protection against copied transmissions.
- IP65 environmental resistance suits exposed everyday remote use.
- CR2032 battery operation keeps the handheld transmitter compact and serviceable.
- Catalogue Family:
- TRANSMITTERS & RECEIVERS
- Model:
- AK4-W26
- Product Type:
- Transmitters & Receivers
- Wiegand Format:
- 26-bit
- Environmental Resistance:
- IP65
- Dimensions:
- 63 x 35.5 x 12 mm
- Weight:
- 26 g
- Transmission:
- ASK (OOK) at 433.92 MHz, approximately 40 uW EIRP
- Data Packet:
- 69-bit encrypted packets with 32-bit serial number
- Battery:
- CR2032 lithium/manganese button cell
