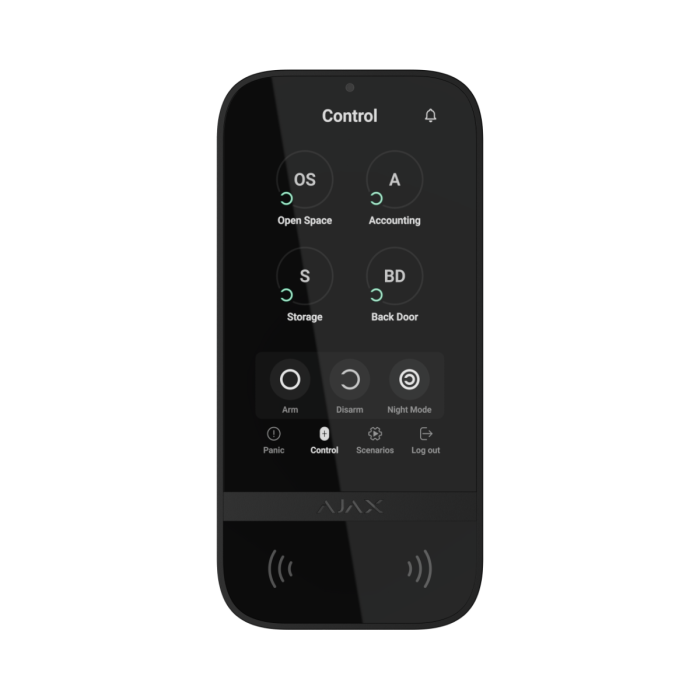

AJAKEYPTSB KeyPad TouchScreen Jeweller Wireless Keypad - Black
AJAKEYPTSB KeyPad TouchScreen Jeweller is a black wireless Ajax keypad with a 5 inch IPS capacitive touch screen for security and automation control. It supports authentication by Pass cards, Tag key fobs, smartphones and codes, while using Jeweller and Wings communication technologies with an Ajax hub or range extender.
The keypad is suited to Ajax systems where users need a more visual control point for group management, automation device toggles, emergency buttons and recent event review. Sound notifications, LED indication, auto-activation when a user approaches and clear arming fault messages support more confident everyday operation.
Key Features
- Gives users a graphical interface for security groups, automation controls and recent events
- Supports several authentication paths so access can be matched to site policy and user preference
- Improves alarm response options with panic, fire and auxiliary emergency buttons on the keypad
- Helps users understand system state through sound, LED indication and on-screen malfunction prompts
- Supports professional installation with SmartBracket mounting, QR pairing and remote Ajax app configuration
- Catalogue Family:
- CARDS
- Device Type:
- KeyPad TouchScreen Jeweller wireless keypad
- Colour:
- Black
- Communication Technology:
- Jeweller and Wings communication technologies
- Communication Range:
- Up to 1,700 m in open space
- Display:
- 5 inch IPS capacitive touch screen
- Resolution:
- 480 x 854 px
- Contactless Access:
- Up to 200 cards and key fobs
- Authentication Methods:
- Pass card, Tag key fob, smartphone and codes
- Emergency Buttons:
- Panic, fire and auxiliary alert
- Battery:
- 6 x AA battery, pre-installed
- Battery Life:
- Up to 1.5 years
- Optional External Power:
- 10.5-14 V DC, up to 0.5 A
- Operating Temperature:
- -10 deg C to +40 deg C
- Dimensions:
- 171.5 x 82.1 x 26 mm
- Weight:
- 327 g
- Product Type:
- Card / Fob
