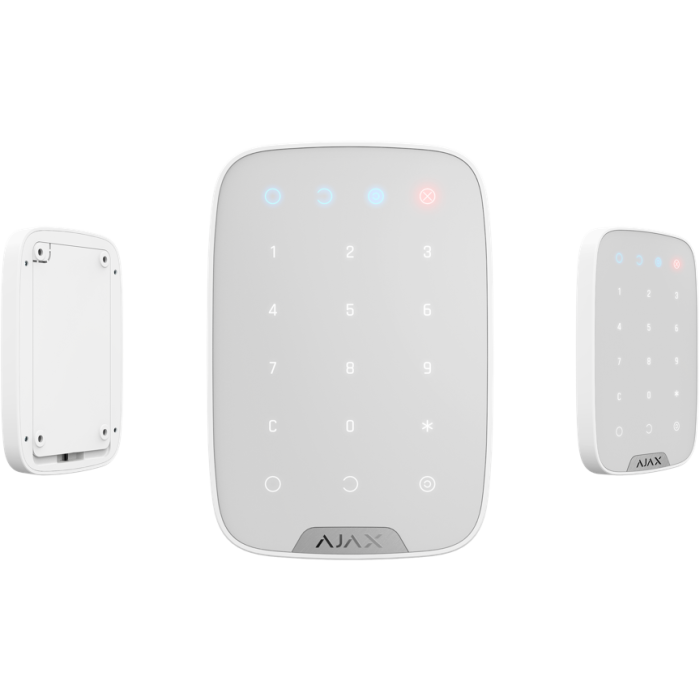

AJAKEYPW KeyPad Jeweller Wireless Touch Keypad - White
AJAKEYPW KeyPad Jeweller is a white wireless touch keypad for controlling an Ajax security system through a compatible Ajax hub. It supports one general passcode, up to 200 personal passcodes, duress codes, a panic button function and security mode changes without using the mobile app.
Designed for indoor installation, the keypad features illuminated touch buttons with audible feedback for convenient arming and disarming. It uses encrypted two-way Jeweller wireless communication with a compatible Ajax hub or range extender and supports SmartBracket mounting with QR-code pairing for installation.
Key Features
- Provides a dedicated wall-mounted keypad for quick security mode changes
- Supports one general passcode and up to 200 personal passcodes for user identification
- Includes configurable protection against repeated incorrect code attempts
- Supports duress codes and a panic button function for emergency situations
- Illuminated touch buttons and audible feedback improve operation in low-light conditions
- Catalogue Family:
- ALARM / INTRUSION
- Device Type:
- KeyPad Jeweller wireless touch keypad
- Colour:
- White
- Communication Technology:
- Jeweller wireless communication
- Communication Range:
- Up to 1,700 m in open space
- Polling Interval:
- 12-300 seconds
- Passcodes:
- Up to 200 personal passcodes and one general passcode
- Code Guessing Protection:
- Locks for 3-180 minutes after three incorrect codes within one minute
- Battery:
- 4 x AAA batteries, pre-installed
- Battery Life:
- Up to 2 years
- Operating Temperature:
- -10 deg C to +40 deg C
- Operating Humidity:
- Up to 75%
- Dimensions:
- 150 x 103 x 14 mm
- Weight:
- 197 g
- Compliance:
- EN 50131 Grade 2, UL985, UL1023, UL2610, ULC S545, ULC S304
- Product Type:
- Alarm / Intrusion
