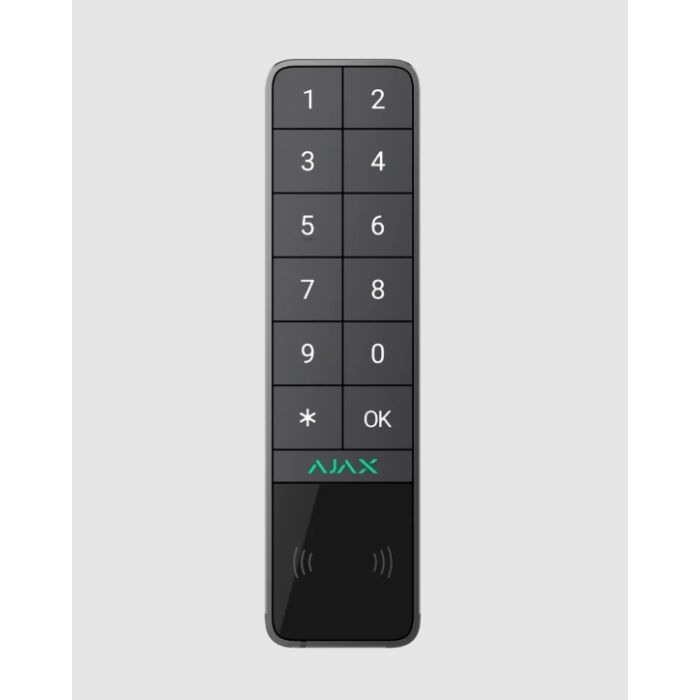

AJAKEYPODGP KeyPad Outdoor Jeweller Wireless Keypad - Graphite
The AJAKEYPODGP KeyPad Outdoor Jeweller is a graphite wireless keypad for Ajax access and security control in indoor and outdoor environments. It supports authentication using Pass cards, Tag key fobs, Bluetooth smartphones and access codes, with Jeweller wireless communication to a compatible Ajax hub or range extender.
Designed for exposed or high-traffic entry points, the keypad features an IP66-rated enclosure, tamper protection, optional external power input and large mechanical buttons for reliable operation, including when wearing gloves.
Key Features
- Supports authentication using Pass cards, Tag key fobs, Bluetooth smartphones and access codes.
- IP66-rated enclosure for indoor and outdoor installations.
- Remote creation, editing and removal of access codes through Ajax apps.
- Large mechanical buttons provide reliable operation, including with gloves.
- Supports duress codes, panic button functionality and tamper protection.
- Catalogue Family:
- ALARM / INTRUSION
- Device Type:
- KeyPad Outdoor Jeweller wireless keypad
- Colour:
- Graphite
- Use Environment:
- Outdoor and indoor use
- Communication Technology:
- Jeweller wireless communication
- Communication Range:
- Up to 1,700 m in open space
- Contactless Access:
- Pass cards and Tag key fobs, up to 200 devices
- Smartphone Access:
- Bluetooth BLE support, up to 200 smartphones
- Access Codes:
- Up to 200 personal codes, up to 99 unregistered-user codes and one keypad code
- Protection Class:
- IP66
- Impact Protection:
- IK08
- Battery:
- 2 x CR123A batteries, pre-installed
- Battery Life:
- Up to 3 years
- Optional External Power:
- 10.5-14 V DC, up to 1 A
- Operating Temperature:
- -25 deg C to +60 deg C
- Dimensions:
- 170 x 45 x 31.5 mm
- Weight:
- 258 g
- Product Type:
- Alarm / Intrusion
