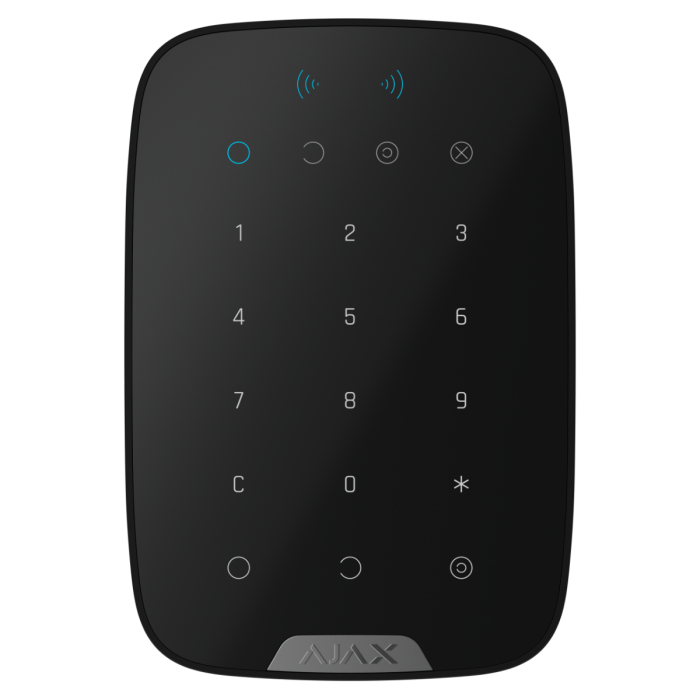

AJAKEYPPB KeyPad Plus Jeweller Wireless Keypad - Black
The AJAKEYPPB KeyPad Plus Jeweller is a black wireless Ajax keypad with touch buttons for security system control and authentication using Ajax Pass cards, Tag key fobs and access codes. It communicates with compatible Ajax hubs or range extenders using Jeweller wireless technology and supports contactless credentials, keypad codes, user codes, unregistered-user codes and RRU codes.
Designed for Ajax security systems, the keypad combines code-based and contactless authentication from a fixed wall-mounted control point. It features SmartBracket mounting, QR-code pairing, app-based configuration, tamper protection and code-guessing protection for secure everyday operation.
Key Features
- Supports authentication using Ajax Pass cards, Tag key fobs and multiple access code types.
- Allows remote management of user codes and access rights through Ajax apps.
- Features silent duress codes and a configurable function button with panic capability.
- Installs quickly with SmartBracket mounting and QR-code pairing.
- Provides tamper alerts, regular polling and communication-loss detection for continuous system monitoring.
- Catalogue Family:
- ALARM / INTRUSION
- Device Type:
- KeyPad Plus Jeweller wireless keypad
- Colour:
- Black
- Communication Technology:
- Jeweller wireless communication
- Communication Range:
- Up to 1,700 m in open space
- Contactless Access:
- Up to 200 cards and key fobs
- Access Codes:
- Up to 200 personal passcodes, up to 99 passcodes and one keypad code
- Duress Codes:
- Up to 200 personal duress codes and one keypad duress code
- Battery:
- 4 × AA FR6 batteries
- Battery Life:
- Up to 3.5 years
- Operating Temperature:
- -10 deg C to +40 deg C
- Operating Humidity:
- Up to 75%
- Dimensions:
- 165 x 113 x 20 mm
- Weight:
- 267 g
- Compliance:
- EN 50131 Grade 2, PD 6662:2017, SIA CP-01, UL985, UL1023, UL2610, ULC S545 and ULC S304
- Product Type:
- Alarm / Intrusion
