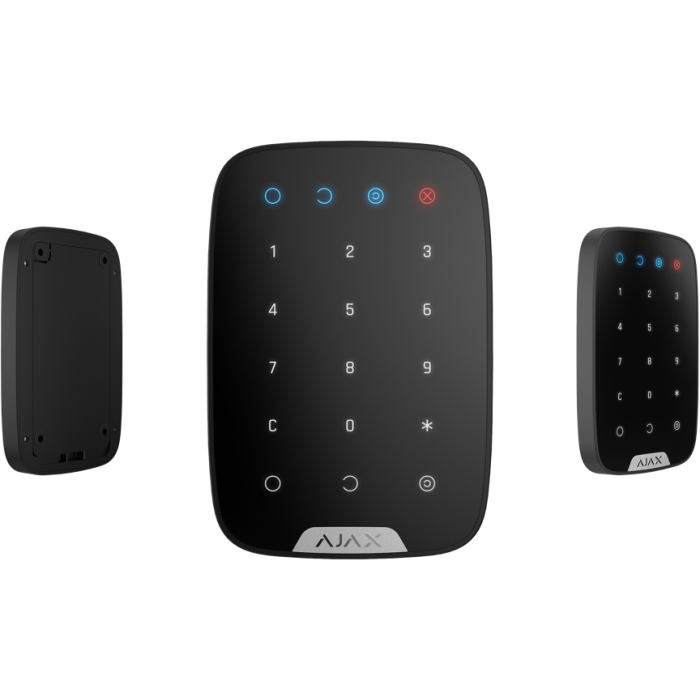

AJAKEYPB KeyPad Jeweller Wireless Touch Keypad - Black
The AJAKEYPB KeyPad Jeweller is a black wireless touch keypad for controlling an Ajax security system through an Ajax hub. It supports general and personal passcodes, duress code functionality, security mode changes, and a function button that can operate as a panic button or mute interconnected fire detector alarms.
Designed for indoor Ajax installations, the keypad provides quick arming and disarming without using a mobile app. Jeweller wireless communication delivers encrypted two-way communication with the hub or radio signal range extender, while illuminated touch buttons and audible feedback support convenient operation in low-light environments.
Key Features
- Provides a dedicated keypad for arming and disarming the Ajax security system.
- Supports general and personal passcodes with user identification.
- Locks after repeated incorrect code entries to help prevent code guessing.
- Supports duress codes and a configurable function button for panic or fire alarm muting.
- Installs with SmartBracket mounting and QR code pairing.
- Catalogue Family:
- ALARM / INTRUSION
- Device Type:
- KeyPad Jeweller wireless touch keypad
- Colour:
- Black
- Compatibility:
- Ajax hubs and Ajax radio signal range extenders
- Communication Technology:
- Jeweller wireless communication
- Communication Range:
- Up to 1,700 m in open space
- Polling Interval:
- 12-300 seconds
- Passcodes:
- Up to 200 personal passcodes and one general passcode
- Code Guessing Protection:
- Locks for 3-180 minutes after three incorrect codes in one minute
- Battery:
- 4 x AAA batteries, pre-installed
- Battery Life:
- Up to 2 years
- Operating Temperature:
- -10°C to +40°C
- Operating Humidity:
- Up to 75%
- Dimensions:
- 150 x 103 x 14 mm
- Weight:
- 197 g
- Compliance:
- EN 50131 Grade 2
- Product Type:
- Alarm / Intrusion
