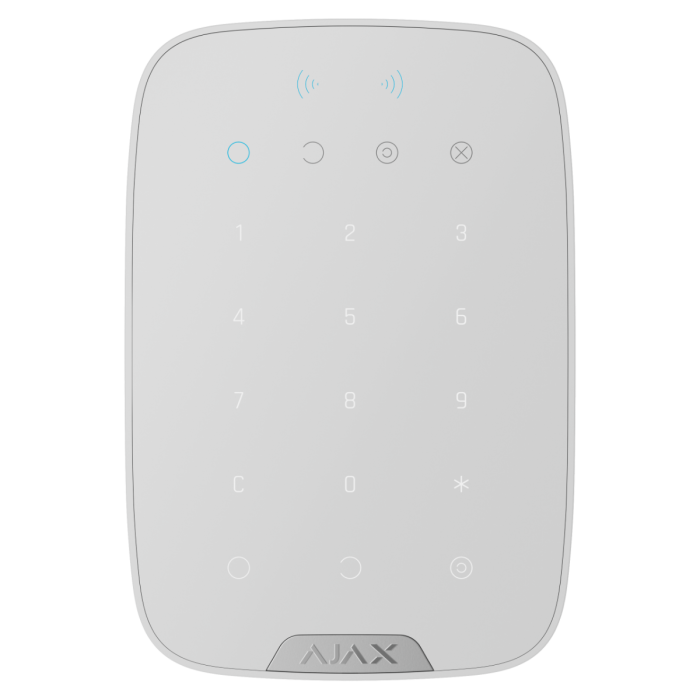

AJAKEYPPW KeyPad Plus Jeweller Wireless Keypad - White
The AJAKEYPPW KeyPad Plus Jeweller is a white wireless keypad for Ajax security systems, combining touch-button operation with authentication using Pass cards, Tag key fobs and access codes. It features Jeweller wireless communication, encrypted data transmission, remote code management, duress codes and protection against code guessing.
Designed for fixed control points, the keypad provides convenient system arming, disarming and access control without relying solely on a mobile app. SmartBracket mounting, QR code pairing and Ajax app configuration simplify installation and ongoing user management.
Key Features
- Supports authentication using Pass cards, Tag key fobs and access codes.
- Allows remote management of access codes and user permissions through Ajax apps.
- Provides a fixed white keypad for convenient on-site system control.
- Includes code-guessing protection, duress codes and device authentication.
- Uses encrypted Jeweller wireless communication with regular device polling.
- Catalogue Family:
- ALARM / INTRUSION
- Device Type:
- KeyPad Plus Jeweller wireless keypad
- Colour:
- White
- Communication Technology:
- Jeweller wireless communication
- Communication Range:
- Up to 1,700 m in open space
- Contactless Access:
- Up to 200 cards and key fobs
- Access Codes:
- Up to 200 personal passcodes, up to 99 passcodes and one keypad code
- Duress Codes:
- Up to 200 personal duress codes and one keypad duress code
- Battery:
- 4 x AA FR6 batteries
- Battery Life:
- Up to 3.5 years
- Operating Temperature:
- -10 deg C to +40 deg C
- Operating Humidity:
- Up to 75%
- Dimensions:
- 165 x 113 x 20 mm
- Weight:
- 267 g
- Compliance References:
- EN 50131 Grade 2, PD 6662:2017, SIA CP-01, UL985, UL1023, UL2610, ULC S545 and ULC S304
- Product Type:
- Alarm / Intrusion
