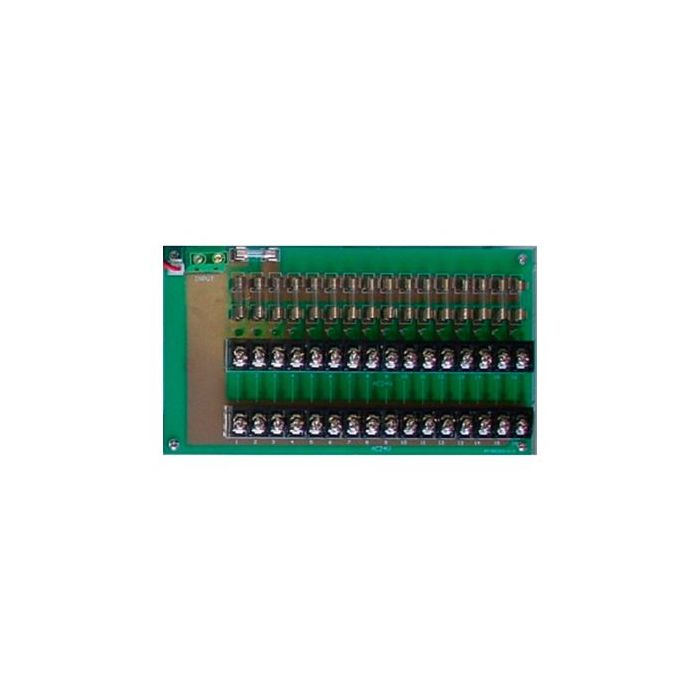

AC16WAYPCB AC Power Distribution Board - 16 Way
The AC16WAYPCB is a 16-way AC power distribution board that provides 16 fused outputs from a 10-30 V AC/DC input. It features individual LED indication for each circuit and supports a maximum total current capacity of 16 A.
Designed for security, access control, and automation enclosures, the board provides compact low-voltage power distribution with multiple protected outputs from a shared input. The slim PCB format supports organised wiring and simplifies circuit status monitoring during installation and servicing.
Key Features
- Distributes one low-voltage input across sixteen protected output circuits.
- Compact PCB design supports neat enclosure installations where space is limited.
- Individual LED indicators provide clear circuit status for servicing and diagnostics.
- Supports 10-30 V AC/DC low-voltage power distribution applications.
- 16 fused outputs provide organised and serviceable power distribution.
- Catalogue Family:
- POWER SUPPLY
- Input Voltage:
- 10V-30V DC/AC
- Output:
- 16 x fused outputs
- Total Current:
- 16A max
- Relay Rating:
- 1A 30VDC
- Size (H X W X D) / Weight:
- 15 x 106 x 190mm / 200g
- Product Type:
- Power Supply
