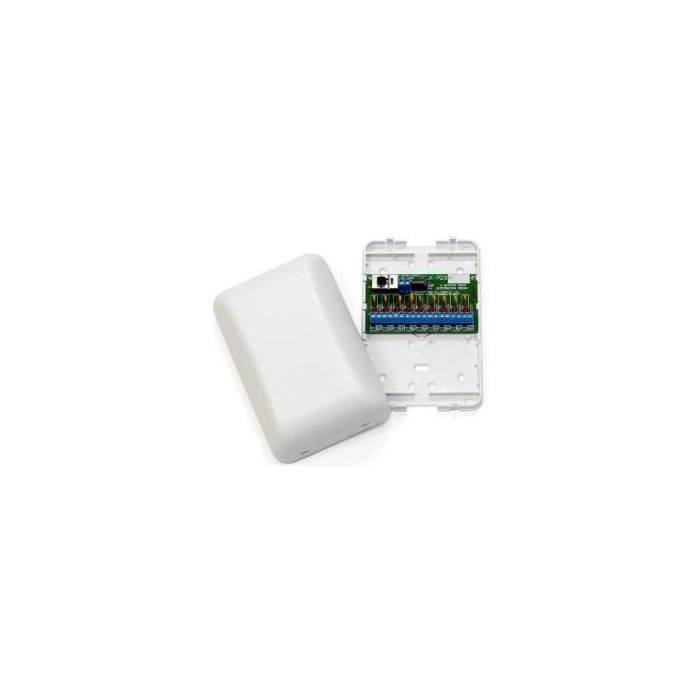

101-278 Ness ELK-PD9HC Power Distribution Module - 9 Outputs
The 101-278 is the Ness ELK-PD9HC power distribution module for splitting a single AC or DC input into nine protected outputs. It includes auto-resetting PTC overload protection, visual LED indicators, a master power switch and support for powering devices such as video cameras, PIRs and photobeams.
This module is useful in security and automation panels where multiple low-voltage devices need organised power distribution from one source. Its resettable protection helps stop one shorted output from disabling the other outputs, while the test points and LED indicators support easier service checks.
Key Features
- Nine protected outputs help organise power distribution from a single supply
- Auto-resetting PTC protection avoids replacing fuses after overload events
- LED output indicators make power status easier to check at the panel
- Master switch gives a simple way to isolate connected output power
- Outputs can be paralleled where the current requirements allow it
- Catalogue Family:
- ACCESSORIES
- Model:
- ELK-PD9HC
- Outputs:
- 9 individual outputs
- Output Protection:
- Auto-resetting PTC overload protection
- Maximum Current per Output:
- 400 mA
- Input / Output Voltage:
- 6 - 30 V AC or DC
- Input Connection:
- Screw terminals or 2.1 mm plug-in DC jack
- Output Connection:
- Screw terminals, positive and negative for each output
- Enclosure Size:
- 165 x 109 x 50 mm
- Product Type:
- Accessories
