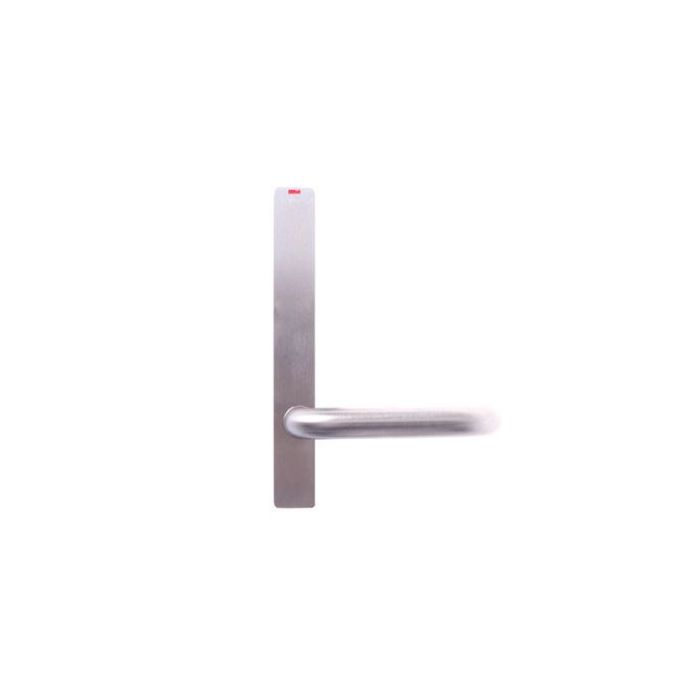

481270SC 4800 Series Exterior Square End Lever and Lens Handle - Lever 70 Satin Chrome
The 481270SC is a Lockwood 4800 Series narrow plate brass door furniture configuration for exterior square-end 3780 Series applications.External handle with lever and lens configuration, lever type 70, and a satin chrome finish for 3780EL Series Selector electric mortice lock furniture.
Suitable for slimline external plate applications where a cylinder is not required. Suits door thicknesses from 32 mm to 50 mm, supports reversible lever fitting where applicable, and features a 185 x 26 x 11.5 mm plate profile.
Key Features
- Lever and lens function gives a clear exterior furniture option for 3780EL electric mortice lock layouts.
- Cylinder-free exterior square-end configuration suits applications where the handle function does not require a cylinder aperture.
- Lever 70 selection provides an AS1428.1 compliant lever profile within the 4800 Series ordering table.
- Satin chrome finish aligns with the standard finish for the 4800 Series brass furniture range.
- Slim narrow-plate format helps maintain a neat fit on short-backset mortice lock door furniture schedules.
- Catalogue Family:
- LOCKING
- Model:
- 481270SC
- Series:
- 4800 Series Narrow Plate Brass Door Furniture
- Plate Type:
- 48 - Exterior Square End for short backset 3780 Series mortice locks
- Plate Function:
- 12 - Lever and Lens for 3780EL Series Selector Electric Mortice Locks
- Lever Type:
- 70
- Lever Dimensions:
- 121mm length; 53mm projection
- Finish:
- SC - Satin Chrome
- Door Thickness:
- 32 to 50mm
- Plate Dimensions:
- 185 x 26 x 11.5mm
- Application:
- Designed for Lockwood Selector and Synergy Series short and standard backset mortice locks
- Standards:
- Lever type 70 is listed in the AS1428.1 compliant lever group; 4800 Series lever sets tested to Level D8 under AS4145.2-2008
- Product Type:
- Locking
