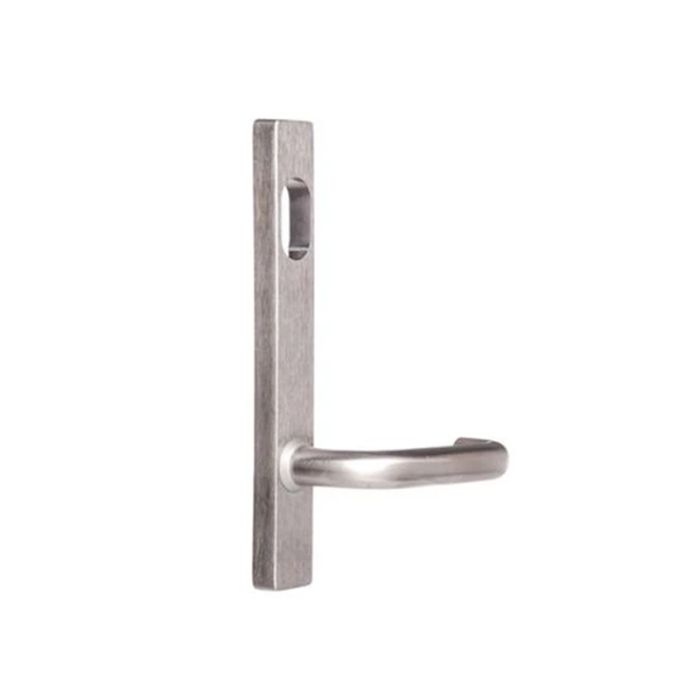

4801/70SC Lockwood 4800 Series External Narrow Plate With Cylinder Hole and Lever - Satin Chrome
The Lockwood 4801/70SC is a 4800 Series external narrow plate with cylinder hole and lever, finished in satin chrome for aluminium door applications and a brass narrow-plate format measuring 185 mm x 26 mm x 11.5 mm with concealed fixing and an oval cylinder cut-out.
Designed to suit Lockwood 3580 and 3780 Series mortice locks, this plate supports slimline door furniture requirements on commercial aluminium doors. AS1428.1 compliance, fire testing, and S3 Security/D3 Durability ratings to AS4145.2-1993 give the product useful specification backing.
Key Features
- Slim narrow-plate format suits aluminium doors where furniture width is limited
- External lever and cylinder-hole layout supports keyed mortice lock operation
- Concealed fixing provides a cleaner finish on the outside face of the door
- Non-handed design assists straightforward selection across door handing requirements
- Rating and compliance references support commercial hardware schedules
- Catalogue Family:
- LOCKING
- Model:
- 4801/70SC
- Series:
- Lockwood 4800 Series
- Product Type:
- Locking
- Plate Dimensions:
- 185 mm x 26 mm x 11.5 mm
- Door Suitability:
- 32 mm-50 mm aluminium doors
- Material:
- Brass
- Finish:
- Satin Chrome (SC)
- Compatible Lock Series:
- Lockwood 3580 and 3780 Series mortice locks
- Fixing:
- Concealed fixed
- Handing:
- Non-handed
- Cylinder Cut-Out:
- Oval
- Spindle Size:
- 7.6 mm
- Finger Clearance:
- 25 mm
- Compliance:
- AS1428.1 compliant; fire tested; S3 Security and D3 Durability to AS4145.2-1993
- Warranty:
- 25 years
