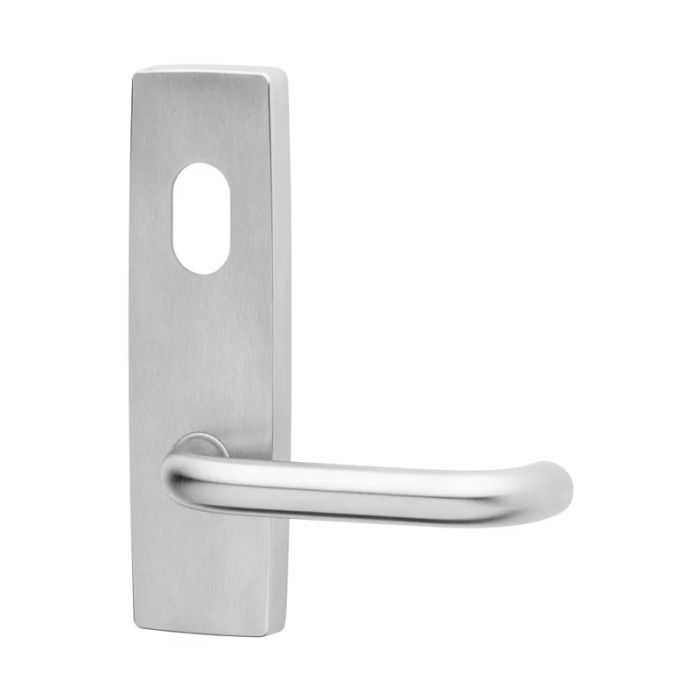

1801/70SC Lockwood 1800 Series External Square End Plate With Cylinder Hole and Lever - Satin Chrome
The Lockwood 1801/70SC is an 1800 Series external square end plate with lever and oval cylinder cut-out, finished in satin chrome for Lockwood 3570 Series mortice lock installations. It is manufactured in Australia from brass and uses a concealed fixing square-plate format with a 166 mm x 48 mm x 12 mm plate profile.
Designed for timber doors between 32 mm and 50 mm, the plate suits commercial and access-controlled openings that need a matching external lever and cylinder interface.
Key Features
- Supports a coordinated external lever and cylinder interface for 3570 Series mortice lock doors
- Concealed fixing helps deliver a clean installed appearance on square end furniture
- Non-handed format simplifies selection across left and right hand door applications
- Brass construction with satin chrome finish suits durable commercial door furniture schedules
- Meets listed accessibility, fire, security and durability requirements
- Catalogue Family:
- LOCKING
- Model:
- 1801/70SC
- Series:
- Lockwood 1800 Series
- Product Type:
- Locking
- Plate Dimensions:
- 166 mm x 48 mm x 12 mm
- Door Suitability:
- 32 mm-50 mm timber doors
- Material:
- Brass
- Finish:
- Satin Chrome (SC)
- Compatible Lock Series:
- Lockwood 3570 Series mortice locks
- Fixing:
- Concealed fixed
- Handing:
- Non-handed
- Cylinder Cut-Out:
- Oval
- Spindle Size:
- 7.6 mm
- Finger Clearance:
- 37 mm
- Compliance:
- AS1428.1 compliant; fire tested; S3 Security and D3 Durability to AS4145.2-1993
- Warranty:
- 25 years
