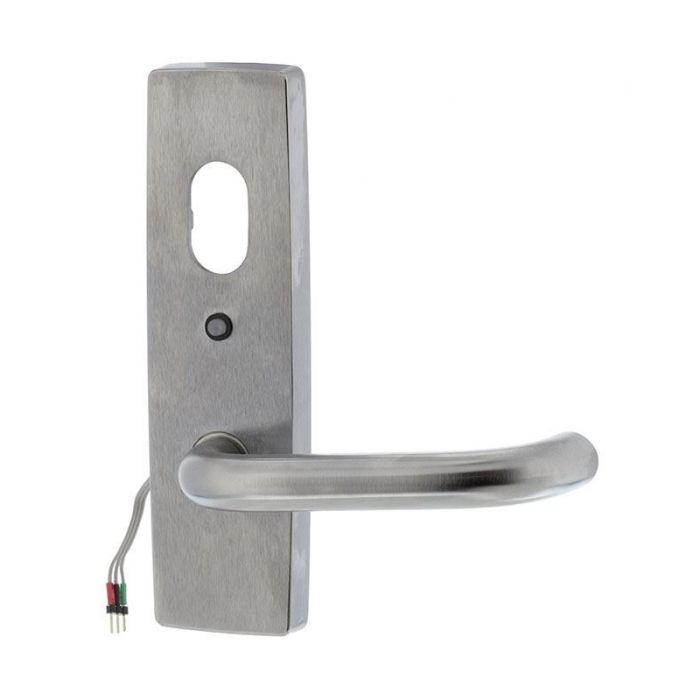

1820/70SC Lockwood 1800 Series LED External Square End Plate With Cylinder Hole and Fixed Lever - Satin Chrome
The Lockwood 1820/70SC is an LED external square end plate with cylinder hole and fixed lever, finished in satin chrome for Lockwood 3570 Series electric mortice lock installations and a brass plate construction with a 166 mm x 48 mm x 12 mm profile and a concealed fixing format.
It is suited to timber doors between 32 mm and 50 mm where an external plate, fixed lever and cylinder interface are required for an electric mortice lock opening. Confirmed fire rating, AS1428.1 compliance and S3 Security/D3 Durability ratings support use in specified commercial door hardware schedules.
Key Features
- Provides a coordinated LED external plate format for 3570 Series electric mortice lock setups
- Fixed lever and cylinder-hole layout supports controlled external door operation
- Concealed fixing keeps the installed furniture neat on square end plates
- Non-handed design helps streamline ordering and installation planning
- Confirmed compliance and rating references give specifiers clearer product assurance
- Catalogue Family:
- LOCKING
- Model:
- 1820/70SC
- Series:
- Lockwood 1800 Series
- Product Type:
- Locking
- Plate Dimensions:
- 166 mm x 48 mm x 12 mm
- Door Suitability:
- 32 mm-50 mm timber doors
- Material:
- Brass
- Finish:
- Satin Chrome (SC)
- Compatible Lock Series:
- Lockwood 3570 Series electric mortice locks
- Fixing:
- Concealed fixed
- Handing:
- Non-handed
- Cylinder Cut-Out:
- Oval
- Spindle Size:
- 7.6 mm
- Finger Clearance:
- 36 mm
- Compliance References:
- AS1428.1 compliant; fire rated 4 hours; S3 Security and D3 Durability to AS4145.2-1993
- Warranty:
- 25 years
