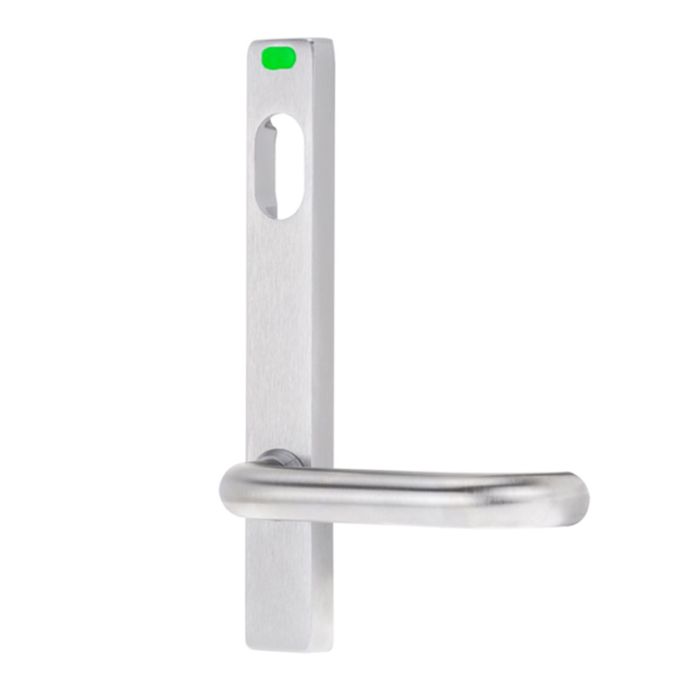

481170SC 4800 Series Exterior Square End Cylinder Lever and Lens Handle - Lever 70 Satin Chrome
The 481170SC is a Lockwood 4800 Series narrow plate brass door furniture configuration for exterior square-end 3780 Series applications. The 481170SC is an external handle with cylinder, lever and lens configuration, lever type 70 and a satin chrome finish for 3780EL Series Selector electric mortice-lock furniture.
It is suitable for slimline external plate applications requiring cylinder, lever and lens functions. Suits door thicknesses from 32 mm to 50 mm, supports reversible lever fitting where applicable, and features a 185 x 26 x 11.5 mm plate profile.
Key Features
- Exterior square-end plate format gives a defined narrow-plate match for 3780 Series mortice lock applications.
- Cylinder, lever and lens function supports electric mortice furniture layouts where access hardware and lens provision are both required.
- Lever type 70 selection keeps the product aligned with the ordering structure and compliant lever group.
- Satin chrome finish matches the 4800 Series standard finish code for a clean commercial hardware schedule.
- Reversible lever handing supports flexible site fitting where a non-handed lever configuration is appropriate.
- Catalogue Family:
- LOCKING
- Model:
- 481170SC
- Series:
- 4800 Series Narrow Plate Brass Door Furniture
- Plate Type:
- 48 - Exterior Square End for short backset 3780 Series mortice locks
- Plate Function:
- 11 - Cylinder, Lever and Lens for 3780EL Series Selector Electric Mortice Locks
- Lever Type:
- 70
- Lever Dimensions:
- 121mm length; 53mm projection
- Finish:
- SC - Satin Chrome
- Door Thickness:
- 32 to 50mm
- Plate Dimensions:
- 185 x 26 x 11.5mm
- Application:
- Designed for Lockwood Selector and Synergy Series short and standard backset mortice locks
- Standards:
- Lever type 70 is listed in the AS1428.1 compliant lever group; 4800 Series lever sets tested to Level D8 under AS4145.2-2008
- Product Type:
- Locking
