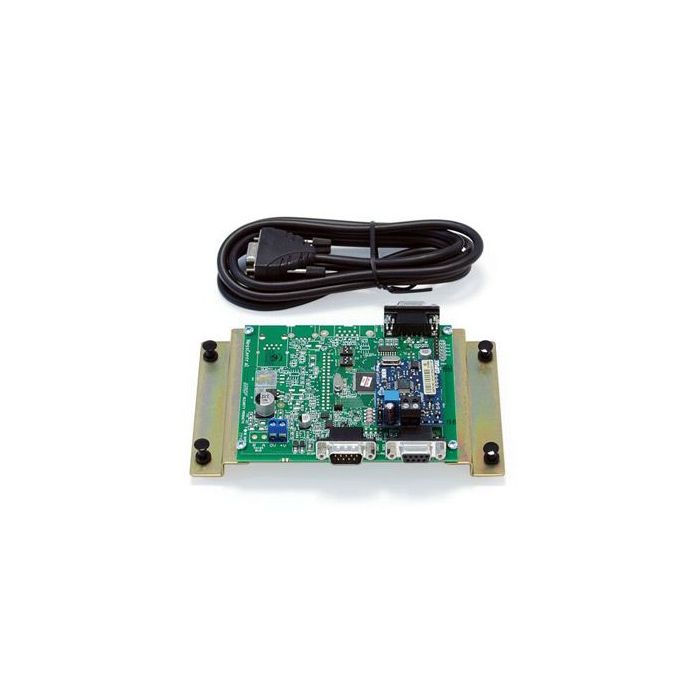

101-236 Ness M1 C-Bus Interface Module V3
The 101-236 is the Ness M1 C-Bus Interface Module Version 3 for connecting Ness M1G and M1EZ8 systems to Clipsal C-Bus networks. It connects directly to C-Bus through the onboard Clipsal SIM module and supports two-way communication between the M1 system and the C-Bus network.
This interface suits automation installations where lighting and C-Bus outputs need to respond to M1 events or where C-Bus switches are used to control M1 functions through rules. It provides a dedicated bridge between the security and automation panel and the lighting network while keeping C-Bus programming within the supported M1 workflow.
Key Features
- Interfaces Ness M1G and M1EZ8 systems with Clipsal C-Bus networks
- Supports up to 255 C-Bus lights or outputs for M1 lighting control
- True two-way C-Bus communication supports both sending and receiving commands
- Direct C-Bus connection removes the need for a separate PCI interface
- M1 rules can use C-Bus activity or M1 events for practical automation outcomes
- Catalogue Family:
- FOBS & CARDS
- Model:
- Ness M1 C-Bus Interface Module V3
- System Compatibility:
- Ness M1G and M1EZ8
- Network:
- Clipsal C-Bus
- C-Bus Capacity:
- Up to 255 individual C-Bus lights or outputs
- Communication:
- True two-way communication on C-Bus
- Operating Voltage:
- 12 V DC
- Current Draw:
- 60 mA maximum, 30 mA standby
- Circuit Board Dimensions:
- 110 x 115 x 1.6 mm
- Product Type:
- Card / Fob
