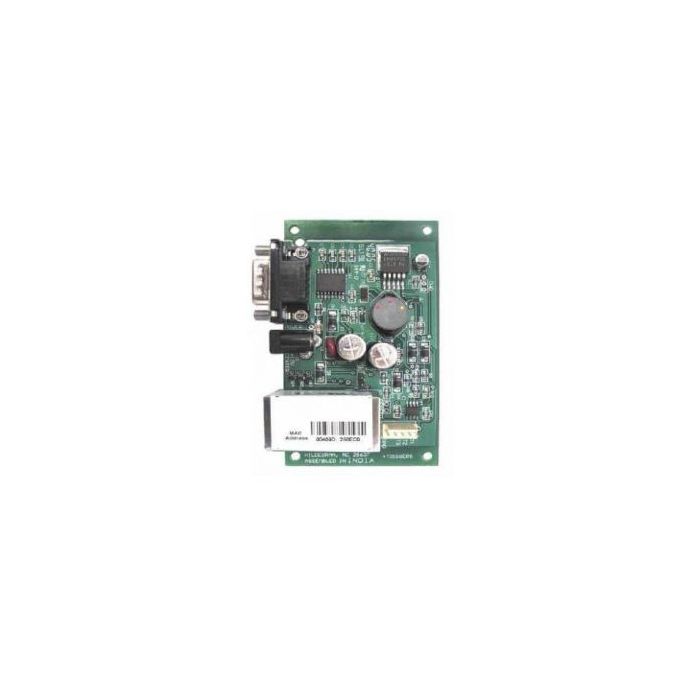

101-215 Ness M1XEP Ethernet Interface Module
The 101-215 is the Ness M1XEP Ethernet interface module for connecting an M1 family control to an Ethernet network using TCP/IP. It includes an RS-232 serial port interface, embedded web server, email event notification, FIPS 128-bit encryption and a 10/100 Mbit network interface.
This module supports reporting, programming, remote access and network-based integration for M1 installations. It is a key accessory where the M1 control needs secure local-network connectivity, virtual keypad access or network services such as email notifications.
Key Features
- Adds Ethernet connectivity to M1 family controls through the RS-232 serial port
- Embedded web server and virtual keypad support network-based system interaction
- Email event notification helps extend system status reporting options
- Secure connection features support password-protected and encrypted access
- Firmware-updateable interface supports ongoing field maintenance
- Catalogue Family:
- PIRS
- Model:
- Ness-M1XEP
- Device Type:
- Ethernet device server with RS-232 serial port interface
- Network Interface:
- 10/100 Mbit, 802.3 compliant
- Supported Protocols:
- TCP, UDP, DHCP, SSL 3.0/TLS 1.0, HTTP, SMTP
- Encryption:
- FIPS 128-bit encryption
- Operating Voltage:
- 12 V DC
- Current Draw:
- Approximately 300 mA
- Housing Dimensions:
- 4.25 x 6.375 x 2.125 inches
- Circuit Board Dimensions:
- 2.25 x 3.95 inches
- Product Type:
- PIR Sensor
