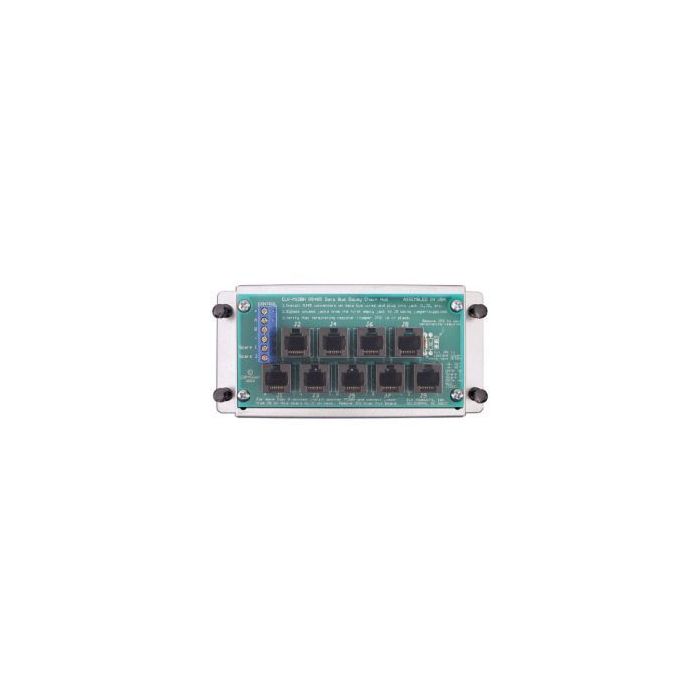

101-207 ELK M1DBH RJ45 Data Bus Hub
The 101-207 is the ELK M1DBH data bus hub for connecting multiple home-run CAT5 or CAT6 data cables to an M1 control. The hub accepts RJ45 plugs, series-connects the Data A and Data B lines internally and provides a clean method for managing M1 data bus wiring.
This hub is useful where multiple keypads, expanders or other data-bus devices return to the control location. The included RJ45 terminating plug and nine data bus connections help installers manage bus termination and cable organisation in structured wiring enclosures.
Key Features
- RJ45 data-bus jacks help keep multiple CAT5 or CAT6 home runs organised
- Internal series connection of data lines simplifies correct M1 bus wiring
- Nine data bus connections support multiple keypad or expander cables
- Terminating plug enables clean end-of-line bus termination at the hub
- Structured wiring mounting plate supports tidy enclosure installation
- Catalogue Family:
- PIRS
- Model:
- M1DBH
- Function:
- M1 data bus hub for multiple home runs
- Cable Type:
- CAT5 or CAT6 with RJ45 plugs
- Data Bus Connections:
- 9
- Input Connections:
- Elevator screw terminals
- Output Connections:
- RJ45 8-pin jacks
- Mounting Plate Dimensions:
- 165 x 76 x 12 mm
- Circuit Board Dimensions:
- 127 x 63.5 mm
- Product Type:
- PIR Sensor
