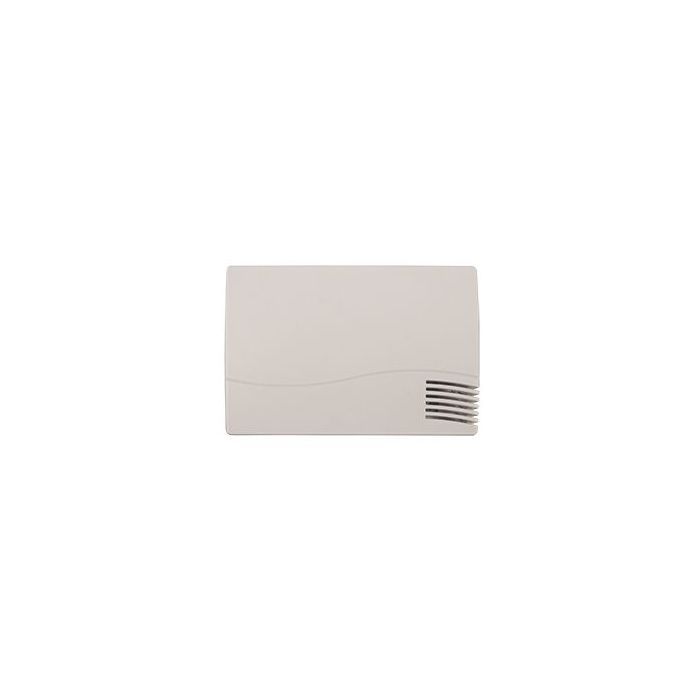

101-229B ELK M1ZTS Zone Temperature Sensor Interface - Version 2
The 101-229B is the ELK-M1ZTS v2 zone temperature sensor interface for M1 and M1EZ8 controls. The interface can monitor temperature through an on-board zone input and communicate to the control using three wires.
This sensor interface suits M1 automation rules where temperature readings need to trigger outputs, text displays or other system actions. It is suitable for covered indoor or outdoor environments, with the interface able to be placed up to 1000 ft from the control when wired.
Key Features
- Adds temperature monitoring to supported M1 or M1EZ8 control zones
- Three-wire communication keeps the field wiring straightforward
- Up to 1000 ft interface placement supports flexible sensor location
- Rules-based use allows temperature readings to drive automation actions
- Version 2 product family includes internal and remote-sensor model options
- Catalogue Family:
- PIRS
- Model:
- ELK-M1ZTS v2 / ELK-M1ZTSR v2
- Measurement Range:
- -50 to +140 F
- Supported Controls:
- ELK-M1 and M1EZ8
- M1 Interface Count:
- Up to 16 interfaces on zones 1 - 16
- Communication:
- 3 wires to control
- Maximum Interface Distance:
- 1000 ft
- Operating Voltage:
- 12 V DC
- Current Draw:
- 10 mA
- Housing Dimensions:
- 3.5 x 2.5 x 0.875 inches
- Product Type:
- PIR Sensor
